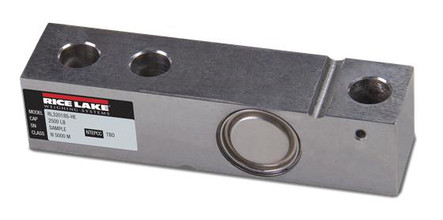

Rice Lake Weighing Systems RL32018S-HE 5,000 lb Stainless Steel Single Ended Beam Load Cell, NTEP
Features
- NTEP Certified 1:5,000 Class III Multiple Cell
- NTEP CC 18-106A2
- 5,000 lb capacity rating
- Stainless steel construction
- IP 69K rating
- 3 mV/V output
- Load cell cable length 20 ft
- Safe overload up to 100% capacity
Interchange
- Rice Lake Weighing Systems RL35083 (non-NTEP)
- VPG Sensortronics 65083
- VPG Celtron SQB-HSS
1 year limited manufacturer's warranty
- Approvals:
- FM
- NTEP:
- Yes
- Class:
- III
- Capacity:
- 5,000 lb
- Safe Overload:
- 100% capacity
- Length:
- 6.75"
- Width:
- 1.63"
- Height:
- 1.88"
- Hole Threading:
- 3/4-16 UNF
- Construction:
- Stainless Steel
- Cable Color Code:
- Red = + Excitation, Black = - Excitation, Green = + Signal, White = - Signal
- Rated Excitation:
- 10 VDC (maximum of 15 V)
- Full Scale Output:
- 3 mV/V +/- 0.05%
- Input Resistance:
- 350 +/- 3 ohms
- Output Resistance:
- 400 +/- 20 ohms
- Insulation Resistance:
- 5000 megohms
- Compensated Temperature Range:
- -10°C to 40°C
- Operating Temperature Range:
- -40°C to 65°C
- Seal Type:
- Hermetically Sealed
- IP Rating:
- IP69K
- Combined Error:
- +/- 0.017% full scale
- Cable Length:
- 20 ft
- Part Number:
- 189182
- Manufacturer:
- Rice Lake Weighing Systems
- Model:
- RL32018S-HE
