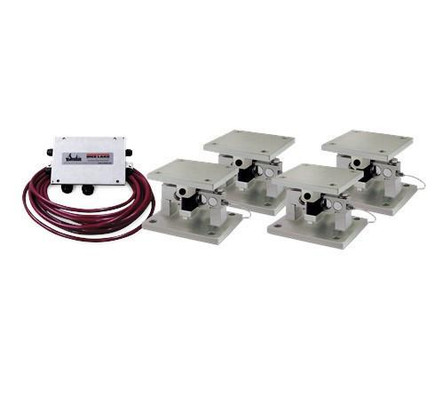

Rice Lake RL2100HE module kits are ideal for hoppers, tanks, blenders, food processing, truck scales, and custom weighing applications. This kit includes four RL75058S-LP stainless steel double-ended beam load cells, four RL2100HE stainless steel modules, a JB4SS junction box, and 25 ft of EL147HE SURVIVOR load cell cable. RL75058S-LP load cells are hermetically sealed with an IP68/IP69K rating for hostile environments.
Features
- Hermetically sealed, IP68/IP69K load cell for hostile environments
- Four fully stainless steel modules and load cells
- One JB4SS NEMA Type 4X stainless steel signal trim junction box
- 25 ft of hostile environment EL147HE SURVIVOR load cell cable
- Each individual load cells cable length is 35 ft
- Bolt-in-place design; module bolts directly to tank leg without requiring additional load buttons or mounting plates
- Center loaded double end beam design
- Self-checking design with lift-off/tip-over protection
- 150% capacity safe overload
- NTEP Certified load cells, 5,000 d, Class IIIL/10,000 d, Class IIIL multiple cell
Documentation
Rice Lake RL2100HE Data Sheet Rice Lake RL75058S-LP Data Sheet
2 year limited manufacturer's warranty
- Individual Load Cell Capacity Rating:
- 60,000 lb
- Combined Capacity Rating:
- 240,000 lb
- Recommended Capacity of Completed Scale:
- 120,000 lb
- Load Cell Safe Overload:
- 150% capacity
- NTEP:
- Yes
- Class:
- III L
- NTEP CC:
- 20-081
- Load Cell Rated Excitation:
- 5-10 VDC (maximum of 15 V)
- Load Cell Output:
- 3 mV/V
- Output Resistance:
- 700 (+/- 7) ohm
- Input Resistance:
- 700 (+/- 14) ohm
- Construction:
- Stainless steel
- IP Rating:
- IP68/IP69K
- Seal Type:
- Hermetically sealed
- Load Cell Other Approvals:
- FM
- Load Cell Cable Length:
- 25 ft
- Load Cell Color Code:
- Red = +Excitation, Black = -Excitation, Green = +Signal, White = -Signal
- Part Number:
- 32961
- Model:
- RL2100HE-60,000 lb (4)
- Manufacturer:
- Rice Lake Weighing Systems
