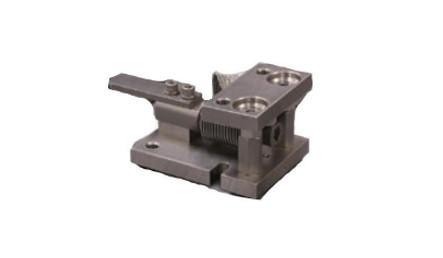

Rice Lake RL1700HE hostile environment compression mount kits are best suited for hoppers, tanks, blenders, food processing, and custom weighing applications. This Rice Lake RL1700HE module kit includes one RLHTO-C3 single ended beam load cell, a grounding strap, and a complete stainless steel mount assembly. Rice Lake RLHTO-C3 load cells are hermetically sealed IP68 rated, constructed of stainless steel, and are NTEP approved.
Features
- Hermetically sealed, IP68 load cell for hostile environments
- One fully stainless steel module and load cell
- Weldless construction retains less residue and allows fast, thorough cleaning
- Module bolts directly to tank leg without requiring additional load buttons or mounting plates
- Self-checking with lift-off/tip-over protection and jacking/shipping bolts
- Load cell is isolated from overload in all directions
- NTEP approved load cell
Documentation
2 year limited manufacturer's warranty
- Capacity:
- 2200 lb
- Load Cell Safe Overload:
- 150% capacity
- NTEP:
- Yes
- Class:
- III/III L
- NTEP CC:
- 18-107
- Load Cell Rated Excitation:
- 5-10 VDC (maximum of 15 V)
- Load Cell Output:
- 2 mV/V
- Output Resistance:
- 350 ohm +/- 3 ohm
- Input Resistance:
- 400 ohm +/- 20 ohm
- Construction:
- Stainless steel
- IP Rating:
- IP68
- Seal Type:
- Hermetically sealed
- Load Cell Other Approvals:
- FM, OIML
- Load Cell Cable Length:
- 3 meter
- Grounding Strap:
- Yes
- Load Cell Color Code:
- Blue = +Excitation, Black = -Excitation, White = +Signal, Red = -Signal, Green = +Sense, Yellow = -Sense
- Part Number:
- 32973
- Model:
- RL1700HE-1000 kg
- Manufacturer:
- Rice Lake Weighing Systems
