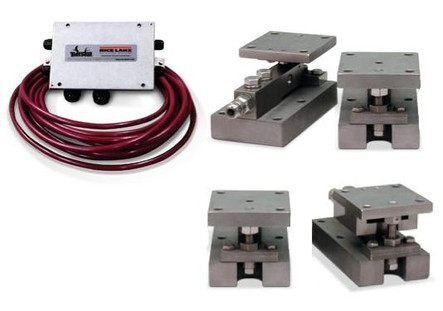

Rice Lake Survivor Paramounts HE stainless steel module kits are ideal for hoppers, tanks, blenders, food processing, and custom weighing applications. This kit includes four Flintec SB4 stainless steel load cells, four Paramounts HE stainless steel steel modules, a JB4SS junction box, and 25 ft of EL147HE SURVIVOR load cell cable. SB4 load cells are IP69K rated and NTEP approved.
Features
- Hermetically sealed, IP69K rated load cells
- 4 stainless steel steel modules
- 4 stainless steel load cells
- One JB4SS NEMA Type 4X stainless steel signal trim junction box
- 25 ft of hostile environment EL147HE SURVIVOR load cell cable
- Each individual load cell cable length is 10 ft to 15 ft
- Self-checking design
- Jacking screw allows empty vessel to be lifted clear of load cell for maintenance
- Bolt-in-place design; module bolts directly to tank leg without requiring additional load buttons or mounting plates
- Load cell outputs are mV/V/ohm calibrated to minimize maintenance costs
- 200% capacity safe overload
- Unique patented blind load hole technology minimizes unwanted side and eccentric loading
- Vessel is free to slide laterally on PTFE-coated surfaces
- NTEP certified load cells 1:5,000 Class III
Documentation
Rice Lake Survivor Paramounts HE Data Sheet Rice Lake Survivor Paramounts HE Installation Manual Rice Lake SB4 Data Sheet
- Individual Load Cell Capacity Rating:
- 2250 lb
- Combined Capacity Rating:
- 9000 lb
- Recommended Capacity of Completed Scale:
- 4500 lb
- Load Cell Safe Overload:
- 150% capacity
- NTEP:
- Yes
- Class:
- III
- Load Cell Rated Excitation:
- 5-10 VDC (maximum of 15 V)
- Load Cell Output:
- 2 mV/V
- Output Resistance:
- 1000 (+/- 2) ohm
- Input Resistance:
- 1100 (± 50) ohm
- Construction:
- Stainless steel
- IP Rating:
- IP69K
- Seal Type:
- Hermetically sealed
- Load Cell Other Approvals:
- FM approved
- Load Cell Cable Length:
- 25 ft
- Load Cell Color Code:
- Green = +Excitation, Black = -Excitation, White = +Signal, Reed = -Signal, Yellow = Shield
- Part Number:
- 29880
- Model:
- Survivor Paramounts HE 2250 lb(4)
- Manufacturer:
- Rice Lake Weighing Systems
