Rice Lake Survivor Paramounts HE 1125 lb Weigh Module Kit (4), NTEP

MSRP: $5,734.00
$5,447.30
(Save $286.70)
Part #:
29879
Availability:
Typically ships in 1-2 days

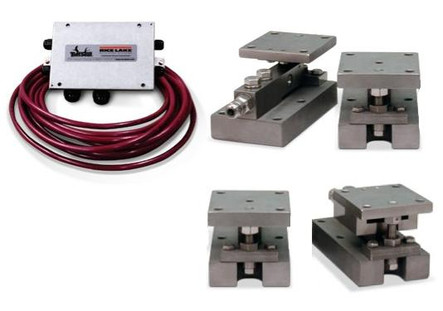

Rice Lake Survivor Paramounts HE stainless steel module kits are ideal for hoppers, tanks, blenders, food processing, and custom weighing applications. This kit includes four Flintec SB4 stainless steel load cells, four Paramounts HE stainless steel steel modules, a JB4SS junction box, and 25 ft of EL147HE SURVIVOR load cell cable. SB4 load cells are IP69K rated and NTEP approved.

Features

  • Hermetically sealed, IP69K rated load cells
  • 4 stainless steel steel modules
  • 4 stainless steel load cells
  • One JB4SS NEMA Type 4X stainless steel signal trim junction box
  • 25 ft of hostile environment EL147HE SURVIVOR load cell cable
  • Each individual load cell cable length is 10 ft to 15 ft
  • Self-checking design
  • Jacking screw allows empty vessel to be lifted clear of load cell for maintenance
  • Bolt-in-place design; module bolts directly to tank leg without requiring additional load buttons or mounting plates
  • Load cell outputs are mV/V/ohm calibrated to minimize maintenance costs
  • 200% capacity safe overload
  • Unique patented blind load hole technology minimizes unwanted side and eccentric loading
  • Vessel is free to slide laterally on PTFE-coated surfaces
  • NTEP certified load cells 1:5,000 Class III

Documentation

Rice Lake Survivor Paramounts HE Data Sheet Rice Lake Survivor Paramounts HE Installation Manual Rice Lake SB4 Data Sheet

2 year limited manufacturer's warranty
Individual Load Cell Capacity Rating:
1125 lb
Combined Capacity Rating:
4500 lb
Recommended Capacity of Completed Scale:
2250 lb
Load Cell Safe Overload:
150% capacity
NTEP:
Yes
Class:
III
Load Cell Rated Excitation:
5-10 VDC (maximum of 15 V)
Load Cell Output:
2 mV/V
Output Resistance:
1000 (+/- 2) ohm
Input Resistance:
1100 (± 50) ohm
Construction:
Stainless steel
IP Rating:
IP69K
Seal Type:
Hermetically sealed
Load Cell Other Approvals:
FM approved
Load Cell Cable Length:
25 ft
Load Cell Color Code:
Green = +Excitation, Black = -Excitation, White = +Signal, Reed = -Signal, Yellow = Shield
Part Number:
29879
Model:
Survivor Paramounts HE 1125 lb(4)
Manufacturer:
Rice Lake Weighing Systems
