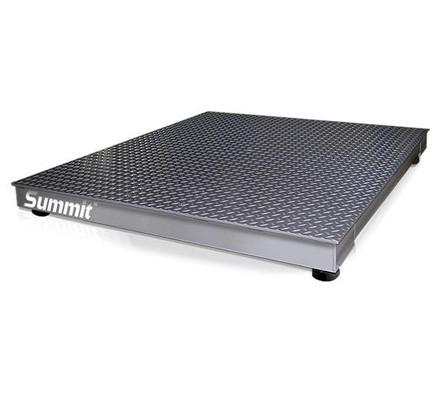

Rice Lake Summit 3000 Floor Scale, 4' x 5', 10,000 lb
The Rice Lake Summit 3000 Floor Scale is a high quality economical solution for floor scale applications. The durable low profile design features non-slip diamond treadplating for added safety. This floor scale series also features a top access junction box, four adjustable load cell feet, and a 1/2-20UNF threaded eyebolt hole for transporting the scale. The Summit 3000 is NTEP Class III approved for use in legal for trade applications.
Features
- Indicator is not included
- 4' x 5' platform
- 10,000 lb capacity
- NTEP CC: 92-001A9, Class III 5000 d
- Heavy-duty industrial design
- Top access junction box
- Signal trim summing board in sealed ABS enclosure
- Four NTEP certified alloy steel shear beam load cells
- Four adjustable rigid polyurethane rubber feet with 3" pads
- Rugged diamond safety treadplate steel deck
- 1/2-20UNF threaded eyebolt hole located in the center of the deck for lifting
- 20 ft of EL147 load cell cable for connecting to an indicator
Documentation
Summit 3000 Data Sheet Summit 3000 Manual Summit Access Ramp and Pit Frame Data Sheet
Summit 3000 weldment and load cells two years, all other components one year
- Capacity:
- 10,000 lb
- Base Construction:
- Painted Mild Steel
- Weighing Platform Dimensions:
- 4' x 5' x 3.625"
- Cable Length:
- 20 ft
- NTEP:
- Yes
- NTEP CC:
- 92-001A9
- Class:
- III
- End Load Capacity:
- 100% full scale
- Part Number:
- 74720
- Manufacturer:
- Rice Lake
