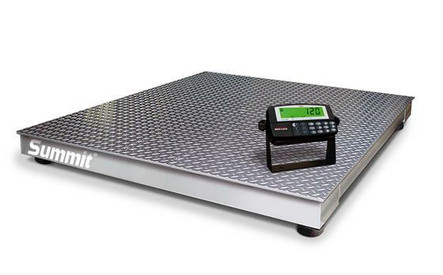

Rice Lake Summit 3000 Factory Calibrated With 120 Plus Indicator Floor Scale, 4' x 4', 5000 lb x 1 lb, 106913, NTEP
The Rice Lake Summit 3000 Floor Scale is a high quality economical solution for floor scale applications. The durable low profile design features non-slip diamond treadplating for added safety. This floor scale series also features a top access junction box, four adjustable load cell feet, and a 1/2-20UNF threaded eyebolt hole for transporting the scale. This system consists of the the Summit 3000 paired with the 120 Plus series indicator and factory calibrated before shipping. The scale is ready for general use immediately upon delivery. The Summit 3000 is NTEP Class III approved for use in legal for trade applications.
Summit 3000 Features
- 4' x 4' platform
- 5000 lb by 1 lb
- NTEP CC: 92-001A9, Class III 5000 d
- Heavy-duty industrial design
- Top access junction box
- Signal trim summing board in sealed ABS enclosure
- Four NTEP certified alloy steel shear beam load cells
- Four adjustable rigid polyurethane rubber feet with 3" pads
- Rugged diamond safety treadplate steel deck
- 1/2-20UNF threaded eyebolt hole located in the center of the deck for lifting
- 20 ft of EL147 load cell cable for connecting to an indicator
120 Plus Digital Indicator Features
- NTEP CC 03-059
- Heavy gauge ABS enclosure
- Ten stored tare values
- Internal rechargeable lithium battery and wall adapter
- Fully numeric keypad, zero, tare, preset tare, hold, gross/net, units, clear, enter/print
- Supports up to (4) 350 ohm load cells or (8) 700 ohm load cells
- Full duplex RS232 and simplex 20mA serial communication ports
- LED display, 0.8 in (20.3 mm) six-digit, seven-segment
- Programmable printer ticket formats
- Full front-panel digital calibration
- Three-stage digital filtering
- Consecutive transaction numbering
- Time and Date
Documentation
Summit 3000 Data Sheet Summit 3000 Manual Summit Access Ramp and Pit Frame Data Sheet Rice Lake 120 Manual Rice Lake 120 Datasheet
- Capacity:
- 5000 lb
- Readability:
- 1 lb
- Base Construction:
- Painted Mild Steel
- Weighing Platform Dimensions:
- 4' x 4' x 3.625"
- Indicator:
- 120 Plus Digital Indicator
- Power:
- 115 VAC Adapter
- System Linearity:
- Within 0.01% of full scale
- Keypad:
- 5 membrane tactile keys
- Serial Communications:
- RS-232, 20mA Serial
- Display Type:
- LED display, 0.8 in (20.3 mm) six-digit, seven-segment
- Cable Length:
- 20 ft
- NTEP:
- Yes
- NTEP CC Base:
- 92-001A9
- NTEP CC Indicator:
- 03-059
- Class:
- III
- End Load Capacity:
- 100% full scale
- Part Number:
- 106913
- Manufacturer:
- Rice Lake
