Rice Lake SCT40-MB Configurable Signal Conditioning Transmitter, 12-24VDC, ModBus/TCP Output, and RS485/232 Serial Port, DIN Mount

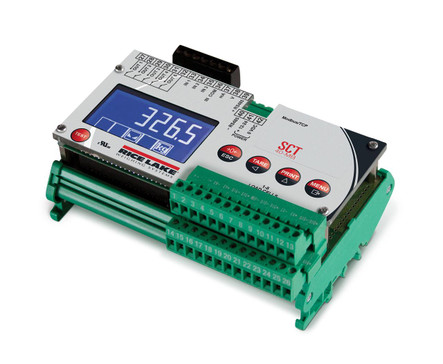

Rice Lake SCT40-MB Configurable Signal Conditioning Transmitter

Designed for PLC systems that require seamless integration of weight data, the SCT-40 provides reliable signal-conditioning function without the cost or bulk of a full size weight indicator/controller. With eight independent load cell channels, the SCT-40 delivers more power and more control in a compact design. The versatile SCT-40 is DIN-rail mountable within a cabinet or control panel, where it converts a scale’s load cell signal to analog output, serial output or a fieldbus protocol. Providing more interface surface than its predecessors, the SCT-40 is more technician-friendly and easier to use, which simplifies scale setup, calibration and operation.

Features

• ModBus/TCP Output
• LCD display
• Supports up to eight independent reading channels for load cells
• Displays weight, configuration, calibration and error conditions
• DIN rail mounting
• Theoretical calibration, real-weight calibration and error conditions
• Push-button or preset tare
• Converts digital weight to analog output
• Supports ASCII or MODBUS RTU protocols
• Full scale analog cut put with zero setting and PLC correction of analog signal
• Bit swapping selection for little endian and endian format
• Three digital inputs, five digital outputs
• One serial port, RS-485 half duplex or RS-232 transmit-only connection

Documentation

Rice Lake SCT40 Data Sheet Rice Lake SCT40 Manual
