Rice Lake SCT-10 Signal Conditioning Transmitter and Weight Indicator Display

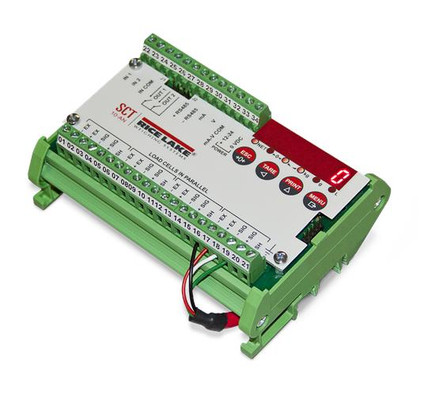

For PLC systems that require weight data from a scale, Rice Lake’s compact SCT-10 transmitter delivers equivalent signal-conditioning function without the cost or bulk of a full size weight indicator/controller. The Rice Lake SCT-10 is DIN-rail mountable within a cabinet or control panel, where it converts a scale’s load cell signals to analog output, serial output, or a specific network protocol. Unlike many other signal transmitters, Rice Lake’s SCT-10 has its own .3 inch weight display, with annunciators for unit and weighing status, and push buttons for zero, tare and setpoint entry. This significantly simplifies scale setup, calibration and operation.
Features
- Converts digital weight to Ethernet TCP/IP output
- Space saving DIN rail mounting
- 999,999 displayed resolution
- Internal resolution 16 million counts
- System linearity ± 0.01% full scale
- Supports up to 4 input channels in parallel
- Serial port RS-485 or RS-232 simplex supports up to 115,200 bps
- 2 inputs, 2 outputs
- LED display, 0.3 in, six digit, seven segment
- NEMA Type 1 plastic pluggable connectors
- Reads in kg, g, and lb
- Center of zero, motion, net, and units annunciators
- 4 Keys for zero, tare, menu, escape, left and up navigation, enter
- 12-24 VDC power
Documentation
1 year manufacturer's limited warranty
- Maximum Displayed Resolution:
- 1:999,999
- Internal Resolution:
- 16 million counts
- Weighing Units:
- lb, kg, g
- Display:
- LED
- Keypad Controls:
- 4 tactile switches
- Digital Inputs:
- 2 inputs 5-24 VDC
- Outputs:
- 2 outputs 24 VDC/60mA N.0. or N.C. (solid state)
- NEMA Rating:
- NEMA Type 1 plastic pluggable connectors
- Load Cell Excitation:
- 5 VDC, 120 mA
- Load Cell Drive:
- Up to 8 x 350 ohm
- Analog Load Cell Input Range:
- +/- 19.5 mV
- Analog Load Cell Signal Sensitivity:
- 0.1 μV/graduation minimum, 1.0 μV/grad recommended
- A/D sample rate:
- 80 Hz
- Communication:
- RS-485 or RS-232 simplex supports up to 115,200 bps
- Operating Temperature Range:
- -4°F to 140°F / -20°C to 60°C
- Power:
- 12-24 VDC, 5 watts
- Dimensions:
- 4.84 x 3.62 x 1.96 in
- Weight:
- 1 lb
- Brand:
- Rice Lake
- Model:
- SCT-10
