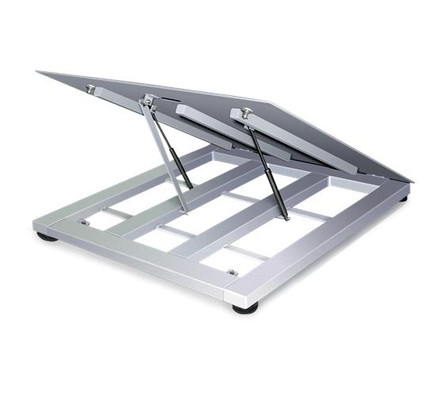

Rice Lake RoughDeck QC Quick Clean Stainless Steel Floor Scale, 4' x 6', 10,000 lb, NTEP Class III, 50412
The Rice Lake RoughDeck QC is a high quality solution for bulk weighing in food, chemical, and other demanding wash down applications. The QC features an exclusive gas-shock design the provides easy lifting and gentle closing. The floor scale also includes a drop in place support bar for added protection during extensive washing. The QC is also NTEP approved Class III for use in legal for trade applications.
Features
- 10,000 lb capacity
- 4' by 6' smooth top plate
- Opens up to 26 degrees
- Rugged wash-down design, rigid 304 stainless steel frame
- Stitch welding standard (consult if continuous weld is required)
- Manual drop-in-place safety bars
- Four stainless steel, hermetically sealed, IP69K shear-beam load cells
- 20 ft of SURVIVOR EL147HE hostile environment cable for connecting junction box to indicator
- Remote TuffSeal JB4SS stainless steel NEMA Type 4X junction box
- 3/16 inch thick top plate
- Four adjustable stainless steel SUREFOOT™ support feet
- Tool-less top plate lock downs
- 1/2-20NF threaded eye-bolt hole in the center for lifting scale into pit frame
- NTEP Class III
Documentation
RoughDeck QC weldment five years, load cells two years, all other components one year
- Capacity:
- 10,000 lb
- NTEP:
- Yes
- Class:
- III
- NTEP CC:
- 92-001
- End Load Capacity:
- 100% of full scale
- Base Construction:
- Stainless Steel
- Top Plate Style:
- Smooth top plate
- Weighing Platform Dimensions:
- 4' x 6' x 5.5"
- Angle When Opened:
- 26 degrees
- Cable Length:
- 20 ft
- Part Number:
- 50412
- Manufacturer:
- Rice Lake
