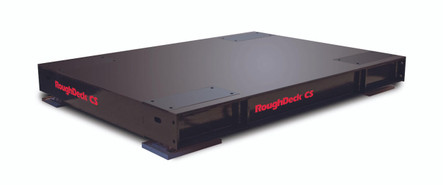

Rice Lake RoughDeck CS coil floor scales are designed for weighing dense industrial materials to Legal for Trade accuracy. For steel coils, castings, cable spools or more, RoughDeck CS is the perfect solution for steel handling applications. RoughDeck CS features tightly spaced steel I-beams, half-inch thick top plate, and the patented G-force™ self-checking mounting system. Additional accessories, including coil cradles, further enhance their functionality and capability. RoughDeck coil scales are built-to-last in demanding environments, with continuous use and years of reliability.
Rice Lake RoughDeck CS floor scales are NTEP approved for use in legal-for-trade applications.
Features
- NTEP approved
- Above ground or pit mounting
- Low-profile, yet heavy duty
- 1/2" thick smooth top plate
- G-Force Tuffseal® signal trim junction box conveniently tucked away and protected in one of the load cell pockets
- MVS self-checking mounting system
- Ease of installation and service with top access load cell pockets
- Rigid conduit runs for load cell cables
- Black epoxy paint
- 20ft Survivor EL147HE hostile environment load cell cable for connecting to an indicator
Manufacturer's limited warranty. 5 years on weldment, 2 years on load cells and 1 year on all other components.
- Capacity:
- 60,000 lb
- Load Cells:
- 4 x MVS Mounts and 50,000 lb load cells
- Platform Size:
- 6 x 6 ft
- Junction Box:
- TuffSeal® JB4SS stainless steel, NEMA Type 4X junction box with signal trim card
- Cable Length:
- 20 ft for connecting junction box to indicator
- Understructure Clearance:
- 1.91 in minimum
- NTEP:
- Yes
- NTEP Approval:
- NTEP CC 11-068, Class III, 5,000 d
- Dimensions (W x D x H):
- 72 x 72 x 11 in.
- Top Plate:
- 0.5 in. thick smooth top plate
- Finish:
- Epoxy paint
- Manufacturer:
- Rice Lake Weighing Systems
- Model Series:
- RoughDeck
- Item No.:
- 107497
