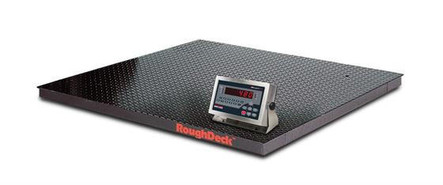

Rice Lake Rough-n-Ready 4' x 4' 10k Floor Scale with 480 Plus Legend Indicator, 115 V, 10,000 lb x 2 lb, NTEP
Rice Lake Rough-n-Ready is a packaged floor scale system including a RoughDeck floor scale, 480 Plus Legend indicator, and 20 feet of SURVIVOR EL146HE hostile environment cable with quick connect. The system is factory setup and calibrated for immediate use upon delivery. The Rough-n-Ready package with a 480 Plus Legend indicator is NTEP approved for legal for trade applications. It is backed by an impressive warranty of 5 years for the floor scale deck and welding, a 2 year warranty for the indicator and load cells, and a one year warranty for all other components.
RoughDeck Features
- NTEP CC 92-001, Class III 5000d
- 10,000 lb capacity, 2 lb readability
- 4' x 4' weighing platform size
- Hole (1/2-20NF) located in center of deck for easy lifting
- Built strong to stand up to the harshest industrial use
- Raised diamond plate surface helps prevent slips
- 4 adjustable stainless steel SUREFOOT support feet
- 20ft SURVIVOR EL147HE hostile environment load cell cable with quick connect
- Side access TuffSeal JB4SS Stainless Steel junction box
- 5 year warranty on floor scale deck and welding
- 2 year warranty on load cells
480 Plus Legend Features
- NTEP CC 12-123 Accuracy Class III/IIIL, 10,000d
- Fully numeric keypad
- Pre-installed Digital I/O and Relay Output
- NEMA Type 4X/IP66, heavy-gauge stainless steel
- Universal tilt stand mount
- Displayed resolution up to 100,000
- Two independent serial ports, RS-232 and 20mA
- LED display, 0.8 in, six digit, seven segment
- NEMA Type 4X/IP66 rated stainless steel housing
- Display units in lb, kg, g, oz, tn or t
- PreVent breather vent
- Programmable printer ticket formats can perform gross, net, accumulator and setpoints
- Configurable with Revolution software
- Five built in options for continuous stream formats
- 8 configurable setpoints with sequenced batch engine
- Adaptive filter or rolling average filter
Weighing Applications
- General Weighing
- Batching / Setpoints
- Accumulation Weighing
RoughDeck HP weldment five years, load cells and indicators two years, all other components one year
- Certified Capacity:
- 10,000 lb
- Certified Readability:
- 2 lb
- Platform NTEP:
- CC 92-001, Class III 5000d
- Indicator NTEP:
- CC 12-123 Accuracy Class III/IIIL, 10,000d
- Calibration:
- External calibration
- Weighing Units:
- lb, kg, g, oz, tn, t
- Load Cells:
- 4 NTEP alloy steel load cells
- Platform Construction:
- Steel painted base, Raised diamond tread top
- Indicator Construction:
- Stainless steel housing, Raised tactile keypad
- Indicator IP Rating:
- IP66
- Display:
- Red LED display, 0.8" (20mm), six-digit, seven-segment
- Keys on Display:
- power, menu, zero, tare, gross/net, unit, print, fully numeric keypad
- Communication:
- Port 1 - RS-232, Port 2 - RS-232 or 20 mA
- Power:
- 115 VAC 50/60 Hz
- Cable Length:
- 20 ft with Quick Connect
- Platform Dimensions:
- 4' x 4' x 3.5"
- Indicator Dimensions:
- 9.5" x 6" x 2.75"
- Platform Weight:
- 375 lb
- Indicator Weight:
- 6.4 lb
- Operating Temperature:
- 14° to 104°F / -10° to 40°C
- Brand:
- Rice Lake Weighing Systems
- Platform Model:
- RoughDeck 4' x 4' 5000 lb pn 67699
- Indicator Model:
- 480 Plus Legend pn 164588
- Part Number:
- 168141
