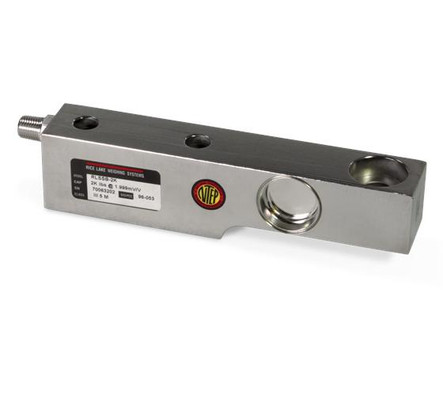

Rice Lake RLSSB-2K 2000 lb Stainless Steel Single Ended Beam Load Cell
Rice Lake RLSSB stainless steel single ended beam load cells are most commonly used in platform scales, tamk scales, and other medium capacity weighing applications. The RLSSB load cell has a thru whole with a C-bore, 15 ft load cell cable, and is constructed of stainless steel. The RLSSB has a welded seal strain guage with an IP67 rating and is manufactured so that it is capable of being installed with a 1/4-18NPT conduit adapter.
RLSSB load cells are used in the following Rice Lake Weighing module kit: RL1900 Series. The RLSSB load cells are interchangeable with VPG Revere SSB, HBM SB3, and Artech SS30610 load cells.
Features
- 2000 lb capacity rating
- NTEP certified 1:5000 Class III
- Stainless steel
- IP 67 rating
- 2 mV/V output
- Load cell cable length 15 ft
- 2 year limited manufacturer's warranty
- Safe overload up to 150% capacity
- Safe sideload up to 100% capacity
- 1/4 - 18NPT conduit adapter size
2 year limited manufacturer's warranty
- Manufacturer:
- Rice Lake Weighing Systems
- Model:
- RLSSB-2K
- Part Number:
- 34311
- Certification:
- NTEP Certified 1:5,000 III
- Other Approvals:
- cFM, CE
- Capacity Rating:
- 2000 lb / 907.2 kg
- Safe Overload:
- 150% capacity
- Safe Side Load:
- 100 % capacity
- Length:
- 8"
- Width:
- 1.44"
- Height:
- 1.88"
- C-bore:
- 0.68 thru C¢¬„¢Bore 1.19 x 0.47DP
- Construction / Finish:
- Stainless steel
- Cable Color Code:
- Green = + Excitation, Black = - Excitation, White = + Signal, Red = - Signal
- Rated Excitation:
- 5-10 VDC (maximum of 15 V)
- Full Scale Output:
- 2.0 mV/V
- Bridge Resistance:
- 350 ohms, nominal
- Insulation Resistance:
- 5000 megohms
- Operating Temperature Range:
- -40° F to 150° F / -40°C to 65°C
- Compensated Temperature Range:
- 14° F to 104° F / -10°C to 40°C
- Seal Type:
- IP67 welded seal
- Combined Error:
- 0.02%
- Non-repeatability:
- 0.01 % full scale
- Cable Length:
- 15 ft
- Cable Diameter:
- 0.200 PTFE coated cable
- Conduit Adapter size:
- 1/4 - 18NPT
- Interchangeable Products:
- VPG Revere SSB, HBM SB3, and Artech SS30610 load cells
