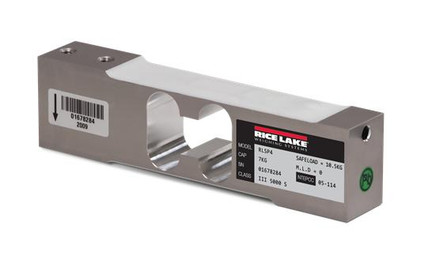

Rice Lake RLSP4-15kg Single Point Load Cell
The Rice Lake RLSP4 single point load cells are constructed of aluminum and is IP66 rated. This RLSP4 load cell is NTEP approved for legal for trade applications except for RLSP4-5kg
RLSP4 load cells are interchangeable with HBM SP4 load cells.
Features
- 15 kg / 33.1 lb capacity rating
- Aluminum construction
- Environmentally sealed IP66
- 2 year limited manufacturer's warranty
- NTEP Approved
- Safe overload up to 150% capacity
- 10 ft of cable
- Max platform size of 18 in x 18 in
2 year limited manufacturer's warranty
- Manufacturer:
- Rice Lake Weighing Systems
- Model:
- RLSP4-15kg
- Certification:
- NTEP Certified 1:5000 III
- Other Approvals:
- FM
- Capacity Rating:
- 15 kg / 33.1 lb
- Safe Overload:
- 150% capacity
- Length:
- 5.92"
- Height:
- 1.57"
- Construction / Finish:
- Anodized aluminum
- Cable Color Code:
- Green = + Excitation, Black = - Excitation, Blue = + Sense, Brown = - Sense, Red = + Signal, White = - Signal, Yellow = Shield
- Rated Excitation:
- 5-10 VDC (15 V maximum)
- Full Scale Output:
- 2 mV/V
- Output Resistance:
- 350 (± 3) ohm
- Input Resistance:
- 350 ohm
- Insulation Resistance:
- 5,000 megohms
- Deflection:
- 0.015"
- Compensated Temperature Range:
- 14° F to 104° F / -10°C to 40°C
- Operating Temperature Range:
- -40° F to 150° F / -40°C to 65°C
- Seal Type:
- Environmentally sealed IP66
- Total Error:
- 0.02 % full scale
- Cable Length:
- 10 ft
- Cable Diameter:
- 0.19 PVC jacket
- Max Platform Size:
- 18" x 18"
