Discontinued by the Manufacturer

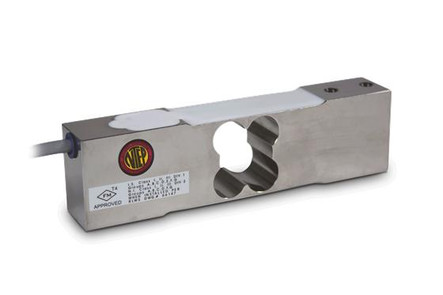

The Rice Lake RLPWM15 single point load cells are constructed of stainless steel and have a environmentally sealed IP67 rating. The RLPWM15 is NTEP approved for legal for trade applications.
RLPWM15 load cells are interchangeable with HBM PW15 and VPS Tedea-Huntleigh 1142 load cells.
Features
- 150 kg / 330.7 lb capacity rating
- Stainless steel construction
- Environmentally sealed IP67 rated
- 2 year limited manufacturer's warranty
- NTEP Approved
- Safe overload up to 150% capacity
- 10 ft of cable
2 year limited manufacturer's warranty
- Manufacturer:
- Rice Lake Weighing Systems
- Model:
- RLPWM15-150kg
- Part Number:
- 119911
- Certification:
- NTEP Certified 1:5000 III
- Other Approvals:
- cFM
- Capacity Rating:
- 150 kg / 330.7 lb
- Safe Overload:
- 150% capacity
- Maximum Platform Size:
- 15 in x 15 in
- Length:
- 5.9"
- Height:
- 1.57"
- Width:
- 0.98"
- Construction / Finish:
- Stainless steel
- Cable Color Code:
- Blue = + Excitation, Black = - Excitation, Green = +Sense, Grey = - Sense, White = + Signal, Red = - Signal
- Rated Excitation:
- 5-10 VDC (maximum of 15 V)
- Full Scale Output:
- 2 mV/V
- Bridge Resistance:
- 350 ohm, nominal
- Insulation Resistance:
- 1000 megohms
- Compensated Temperature Range:
- 14° F to 104° F / -10°C to 40°C
- Operating Temperature Range:
- -40° F to 150° F / -40°C to 65°C
- Seal Type:
- Environmentally sealed, IP67
- Total Error:
- 0.02 % full scale
- Cable Length:
- 10 ft
- Cable Diameter:
- 0.190 PVC jacket
- Interchangeable Products:
- HBM PW15 and VPS Tedea-Huntleigh 1142 load cells
