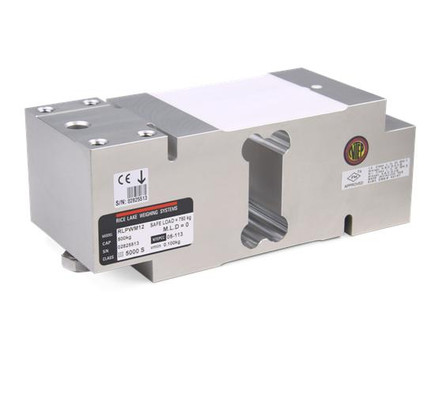

Rice Lake RLPWM12-100kg Single Point Load Cell
Discontinued by the Manufacturer - Replaced with Rice Lake RL1218A-100KG
The Rice Lake RLPWM12 single point load cells are constructed of aluminum and is IP67 rated. The RLPWM12 load cells are NTEP approved for legal for trade applications.
RLPWM12 load cells are interchangeable with HBM PW12, VPG Tedea-Huntleigh 1250, and Rice Lake Weighing Systems RL1250 load cells.
Features
- 100 kg / 220.5 lb capacity rating
- Aluminum construction
- Environmentally sealed IP67
- 2 year limited manufacturer's warranty
- NTEP Approved
- Safe overload up to 150% capacity
- 10 ft of cable
- Max platform size of 30 in x 30 in
2 year limited manufacturer's warranty
- Manufacturer:
- Rice Lake Weighing Systems
- Model:
- RLPWM12-100kg
- Approvals:
- FM, NTEP
- Certification:
- NTEP Certified 1:5000 III
- Capacity Rating:
- 100 kg / 220.5 lb
- Safe Overload:
- 150% capacity
- Length:
- 7.51"
- Height:
- 2.95"
- Construction / Finish:
- Aluminum
- Cable Color Code:
- Green = + Excitation, Black = - Excitation, Blue = + Sense, Brown = - Sense, Red = + Signal, White = - Signal, Yellow = Shield
- Rated Excitation:
- 5-10 VDC (15 V maximum)
- Full Scale Output:
- 2 mV/V
- Output Resistance:
- 330-450 ohm, nominal
- Input Resistance:
- 300-500 ohm
- Insulation Resistance:
- 1,000 megohms
- Compensated Temperature Range:
- 14° F to 104° F / -10°C to 40°C
- Operating Temperature Range:
- -40° F to 150° F / -40°C to 65°C
- Seal Type:
- Environmentally sealed IP67
- Total Error:
- 0.02 % full scale
- Cable Length:
- 10 ft
- Cable Diameter:
- 0.19 PVC jacket
- Max Platform Size:
- 30" x 30"
