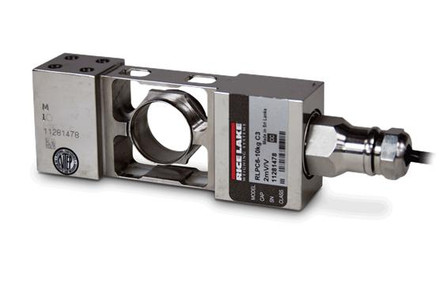

Rice Lake RLPC6-20kg Single Point Load Cell, NTEP
The Rice Lake RLPC6 single point load cells are constructed of stainless steel and have a hermetically sealed IP69K rating which means they can withstand the toughest work environments! The RLCP6 is NTEP approved for legal for trade applications and can be installed into any base that measures 24 inches by 24 inches or smaller.
The RLPC6 load cells are interchangeable with Flintec PC6 load cells.
Features
- 20 kg / 44.1 lb capacity rating
- Maximum platform size 24 inch x 24 inch
- Stainless steel construction
- Hermetically sealed IP69K rated
- 2 year limited manufacturer's warranty
- NTEP Approved
- Safe overload up to 200% capacity
- Safe sideload up to 100% capacity
2 year limited manufacturer's warranty
- Manufacturer:
- Rice Lake Weighing Systems
- Model:
- RLPC6-20kg
- Part Number:
- 87028
- Certification:
- NTEP Certified 1:5000 III
- Other Approvals:
- cFM
- Capacity Rating:
- 20 kg / 44.1 lb
- Safe Overload:
- 200% capacity
- Safe Side Load:
- 100 % capacity
- Length:
- 4.84"
- Height:
- 1.89"
- Max Platform Size:
- 24 in x 24 in
- Hole Threading:
- 8 x M6/15DP
- Construction / Finish:
- Stainless steel
- Cable Color Code:
- Green = + Excitation, Black = - Excitation, White = + Signal, Red = - Signal, Yellow = Shield
- Rated Excitation:
- 5-10 VDC (maximum of 15 V)
- Full Scale Output:
- 2 mV/V
- Output Resistance:
- 960 (± 50) ohms
- Input Resistance:
- 1100 (± 50) ohms
- Insulation Resistance:
- 5000 megohms
- Compensated Temperature Range:
- 14° F to 104° F / -10°C to 40°C
- Operating Temperature Range:
- -40° F to 150° F / -40°C to 65°C
- Seal Type:
- Hermetically Sealed IP69K
- Total Error:
- 0.02 % full scale
- Deflection at Capacity:
- 0.006-0.010"
- Cable Length:
- 10 ft
- Cable Diameter:
- 0.196 polyurethane jacket
- Interchangeable Products:
- Flintec PC6
