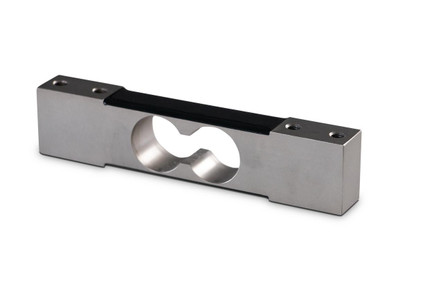

The Rice Lake RLPC3SS stainless steel load cell is environmentally sealed single-point ideally suited for bench scales. It is NTEP certified and OIML approved with capacities from 7 to 150 kg. Each load cell comes with 10 ft of cable standard.
Features
- Maximum platform size to us with is 450 mm × 450 mm
- Stainless steel construction
- Environmentally sealed
- IP 67 rating
- Load cell cable length 10 ft
- Safe overload up to 150% capacity
- OIML R60/2017-A-NL1-21.17 approved
1 year limited manufacturer's warranty
- Capacity:
- 100 kg
- NTEP:
- Yes
- Class:
- III
- CC:
- 21-017
- Safe Overload:
- 150% capacity
- Cable Color Code:
- Green = + Excitation, Black = - Excitation, White = + Signal, Red = - Signal, Yellow = Shield
- Rated Excitation:
- 5 to 10 VDC
- Full Scale Output:
- 2 mV/V
- Input Resistance:
- 385 +/- 15 ohms
- Output Resistance:
- 350 +/- 10 ohms
- Insulation Resistance:
- 5000 megohms
- Construction:
- Stainless steel
- Seal Type:
- Environmentally sealed
- IP Rating:
- IP67
- Combined Error:
- +/- 0.02% full scale
- Cable Length:
- 10 ft
- Part Number:
- 205278
- Approvals:
- OIML R60/2017-A-NL1-21.17
- Manufacturer:
- Rice Lake Weighing Systems
- Model:
- RLPC3SS
