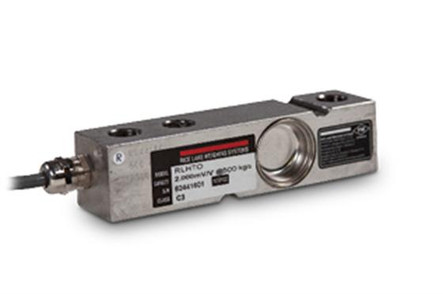

Rice Lake RLHTO-5000kg 5000 kg Stainless Steel Single Ended Beam Load Cell
Rice Lake RLHTO stainless steel single ended beam load cells are most commonly used in platform scales, tank scales, silo scales and pallet truck weighers. The RLHTO load cell has a threaded hole, 5 meter load cell cable, and is constructed of stainless steel. The RLHTO is hermetically sealed with an IP66/68 rating. The RLHTO load cells are the only OIML C3 approved load cell with 6000 divisions.
RLHTO load cells are used in some of the following Rice Lake Weighing module kits:1700 HE. The RLHTO load cells are interchangeable with VPG Tedea-Huntleigh 3510-OIML load cells.
Features
- 5000 kg capacity rating
- Stainless steel
- IP 66/68 rating
- 2 mV/V output
- Load cell cable length 5 meter
- 2 year limited manufacturer's warranty
- Safe overload up to 150% capacity
- Safe sideload up to 100% capacity
2 year limited manufacturer's warranty
- Manufacturer:
- Rice Lake Weighing Systems
- Model:
- RLHTO-5000kg
- Part Number:
- 31252
- Certification:
- OIML C3
- Other Approvals:
- cFM, CE, Waterproof Guarnteed
- Capacity Rating:
- 5000 kg / 11,023.1 lb
- Safe Overload:
- 150% capacity
- Safe Side Load:
- 100 % capacity
- Length:
- 171.5
- Width:
- 36.5
- Height:
- 48
- Hole Threading:
- M12 x1.75
- Construction / Finish:
- Stainless steel
- Cable Color Code:
- Blue = + Excitation, Black = - Excitation, Green = + Sense, Grey = - Sense, White = + Signal, Red = - Signal
- Rated Excitation:
- 5-10 VDC (maximum of 15 V)
- Full Scale Output:
- 2.0 mV/V
- Output Resistance:
- 350 (± 3) ohms
- Input Resistance:
- 380 (± 10) ohms
- Insulation Resistance:
- 2000 megohms
- Operating Temperature Range:
- -40° F to 150° F / -40°C to 65°C
- Compensated Temperature Range:
- 14° F to 104° F / -10°C to 40°C
- Seal Type:
- hermetically sealed IP66/68
- Total Error:
- 0.02% applied load
- Deflection at Capacity:
- 0.4 mm
- Cable Length:
- 5 meters
- Cable Diameter:
- 0.220 polyurethane jacket
- Interchangeable Products:
- VPG Tedea-Huntleigh 3510-OIML load cells
