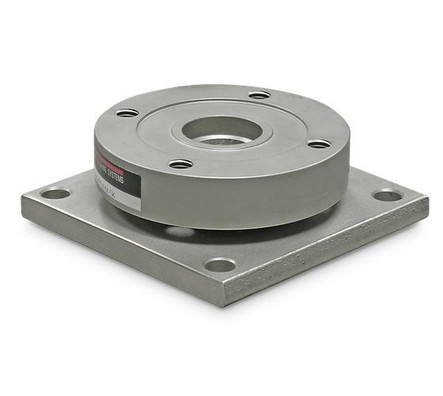

Rice Lake RL9000TWM 5,000 lb Stainless Steel Compression Disk Weigh Modules, Single-Module
The RL9000TWM Series weigh module is ideal for use in tank, hopper, vessel and many other weighing applications. This weigh module has a very low profile compared to many other compression style weigh modules making it perfect for applications where height specifications are limited. This rugged, high-precision mount is designed for easy installation and does not require check rods or other stabilizing hardware. The stainless steel construction and IP67 rating make this weigh module suitable for use in wet environments. The weigh module has 25 feet of load cell cable.
Features
- 5,000 lb capacity rating
- Stainless steel construction
- Welded seal IP67
- 3 mV/V output
- Self-centering and self-checking
- Load cell cable length 25 ft
- 2 year limited manufacturer's warranty
- Safe overload up to 150% capacity
- Safe sideload overload up to 100% capacity
- 100% uplift protection
- Optional stainless steel or mild steel top mounting plate
2 year limited manufacturer's warranty
- Manufacturer:
- Rice Lake Weighing Systems
- Model:
- RL9000TWM
- Part Number:
- 84355
- Other Approvals:
- FM
- Capacity Rating:
- 5,000 lb / 2267.96 kg
- Safe Overload:
- 150% capacity
- Bottom Plate Width (A):
- 4.00"
- Distance Between Cell Mount Holes (B1):
- 2.00"
- Distance Between Bottom Plate Mount Holes (C):
- 3.25"
- Cell Diameter(D):
- 3.50"
- Bottom Plate Mounting Holes (E):
- 0.40"
- Cell Mounting Holes (F):
- 3/8-16 UNC
- Overall Height (G):
- 1.35"
- Bottom Plate Height (H):
- 0.375"
- Cell Height (I):
- 0.75"
- Construction:
- Stainless Steel
- Cable Color Code:
- Green = + Excitation, Black = - Excitation, White = + Signal, Red = - Signal
- Rated Excitation:
- 5-10 VDC
- Full Scale Output:
- 3 mV/V
- Insulation Resistance:
- 5,000 megohms
- Non-repeatability:
- 0.02% full scale
- Non-linearity:
- 0.05% full scale
- Operated Temperature Range:
- 0° F to 150° F / -18° C to 65° C
- Seal Type:
- Welded IP67
- Cable Length:
- 25 ft
- Junction Box:
- None
- Number of Modules:
- 1
