Rice Lake RL9000TWM 20,000 lb Stainless Steel Compression Disk Weigh Modules, 4-Module Kit

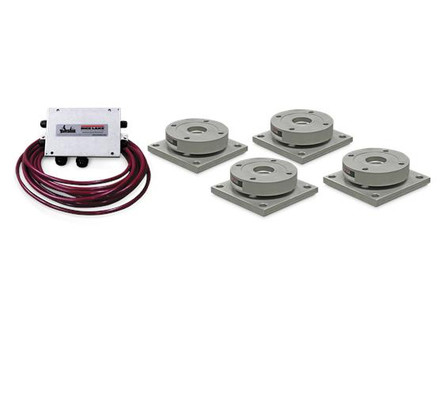

The RL9000TWM Series weigh module is ideal for use in tank, hopper, vessel and many other weighing applications. This weigh module has a very low profile compared to many other compression style weigh modules making it perfect for applications where height specifications are limited. This rugged, high-precision mount is designed for easy installation and does not require check rods or other stabilizing hardware. The stainless steel construction and IP67 rating make this weigh module suitable for use in wet environments. The four-mount kit comes with 25 feet of hostile environment load cell cable and a JB4SS junction box.
Features
- 20,000 lb capacity rating
- Stainless steel construction
- Welded seal IP67
- 3 mV/V output
- Self-centering and self-checking
- Load cell cable length 25 ft
- JB4SS Stainless Steel Junction Box
- 2 year limited manufacturer's warranty
- Safe overload up to 150% capacity
- Safe sideload overload up to 100% capacity
- 100% uplift protection
- Optional stainless steel or mild steel top mounting plate
2 year limited manufacturer's warranty
- Manufacturer:
- Rice Lake Weighing Systems
- Model:
- RL9000TWM
- Part Number:
- 99002
- Other Approvals:
- FM
- Capacity Rating:
- 20,000 lb / 9071.8 kg
- Safe Overload:
- 150% capacity
- Bottom Plate Width (A):
- 7.00"
- Cell Dimension (B1):
- 3.75"
- Distance Between Bottom Plate Holes(C):
- 5.50"
- Cell Diameter(D):
- 6.00"
- Bottom Plate Mounting Holes (E):
- 0.63"
- Cell Mounting Holes (F):
- 1/2-13 UNC
- Overall Height (G):
- 2.48"
- Bottom Plate Height (H):
- 0.75"
- Cell Height (I):
- 1.30"
- Construction:
- Stainless Steel
- Cable Color Code:
- Green = + Excitation, Black = - Excitation, White = + Signal, Red = - Signal
- Rated Excitation:
- 5-10 VDC
- Full Scale Output:
- 3 mV/V
- Insulation Resistance:
- 5,000 megohms
- Non-repeatability:
- 0.02% full scale
- Non-linearity:
- 0.05% full scale
- Operated Temperature Range:
- 0° F to 150° F / -18° C to 65° C
- Seal Type:
- Welded IP67
- Cable Length:
- 25 ft
- Junction Box:
- JB4SS Junction Box, Signal Trim
- Number of Modules:
- 4
