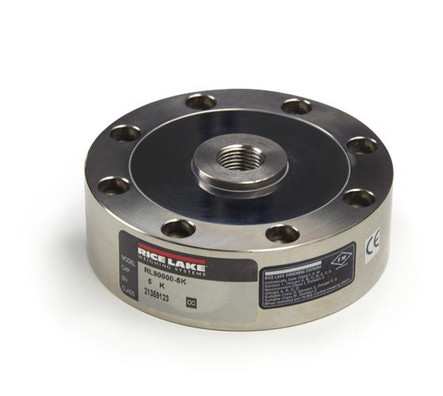

Rice Lake RL90000-5K 5,000 lb Compression Disk Load Cell
The Rice Lake RL90000 compression disk load cells can be used in custom scales and tension loading applications. The RL900000 is often used to build a scale that can be used to weigh awkwardly shaped or overly large products before shipping. The Rice Lake RL90000 is manufactured out of alloy steel and nickle plating and has an environmentally sealed IP67 rating.
The RL90000 load cells are interchangeable with VPG Celtron LCD load cells.
Features
- 5000 lb capacity rating
- Alloy steel contruction with nickle plating
- Environmentally sealed IP67
- 4 mV/V output
- Load cell cable length 50 ft
- 2 year limited manufacturer's warranty
- Safe overload up to 150% capacity
- Safe sideload up to 100%
Note: The 5000 and 10,0000 lb capacity models can be used for tension and compression load applications due to the threaded hole through the center of the cell. The load cup (PN 33616) is sold seperately for 5000 and 10,000 lb models and is required for compression applications.
2 year limited manufacturer's warranty
- Manufacturer:
- Rice Lake Weighing Systems
- Model:
- RL90000-5K
- Part Number:
- 33061
- Other Approvals:
- cFM, CE
- Capacity Rating:
- 5000 lb / 2268 kg
- Safe Overload:
- 150% capacity
- Diameter:
- 4.12"
- Height:
- 1.37"
- Center Hole Threading:
- 5/8-18 UNF-3B
- Construction / Finish:
- Alloy Steel
- Cable Color Code:
- Red = + Excitation, Black = - Excitation, Green = + Signal, White = - Signal, Orange = Shield
- Rated Excitation:
- 15 VDC
- Full Scale Output:
- 4 mV/V
- Output Resistance:
- 350 ohms +/- 3
- Input Resistance:
- 385 ohms +/- 5
- Insulation Resistance:
- 2000 megohms
- Hysteresis:
- 0.02% full scale
- Nonlinearity:
- 0.05% full scale
- Operated Temperature Range:
- -40° F to 150° F / -40° C to 65° C
- Seal Type:
- IP67
- Cable Diameter:
- 0.200 polyurethane jacket
- Cable Length:
- 50 ft
- Interchangeable Products:
- VPG Celtron LCD
