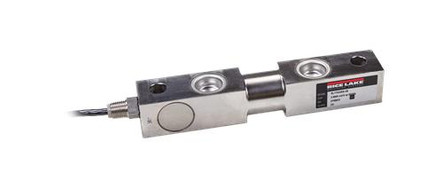

The Rice Lake RL77032SS HE double ended beam load cell is constructed of stainless steel and is backed with a IP69K rating for use in washdown and corrosive applications. Their double-ended beam design ensures uniform load distribution, minimizing eccentric load effects and improving overall weighing accuracy. The RL77032SS HE is commonly used with tank scales, hoppers, and other demanding medium to heavy weight applications.
Features
- Stainless steel construction
- Hermetically sealed
- IP 69K rating
- Load cell cable length 25 ft
- Safe overload up to 150% capacity
- FM approved
2 year limited manufacturer's warranty
- Capacity:
- 10,000 lb
- Safe Overload:
- 150% capacity
- Rated Excitation:
- 5 to 10 VDC
- Full Scale Output:
- 3 mV/V
- Output Resistance:
- 700 +/- 5 ohms
- Input Resistance:
- 770 +/- 10 ohms
- Insulation Resistance:
- 5000 megohms
- Construction:
- Stainless steel
- Seal Type:
- Hermetically sealed
- IP Rating:
- IP69K
- Cable Length:
- 25 ft
- Approvals:
- FM
- Cable Color Code:
- Red = + Excitation, Black = - Excitation, Green = + Signal, White = - Signal
- Manufacturer:
- Rice Lake Weighing Systems
- Model:
- RL77032SS HE 10,000 lb
- Part Number:
- 221564
