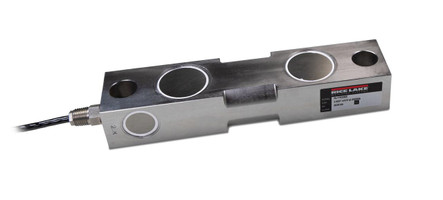

The Rice Lake RL77032SS double ended beam load cell is constructed of stainless steel and is backed with a IP67 rating for use in industrial applications. Their double-ended beam design ensures uniform load distribution, minimizing eccentric load effects and improving overall weighing accuracy. The RL77032 is commonly used with tank scales, hoppers, and other demanding medium to heavy weight applications.
Features
- Stainless steel construction
- Environmentally sealed
- IP67 rating
- Load cell cable length 25 ft
- Safe overload up to 150% capacity
- FM approved
Interchange
- Rice Lake RL75016SS
- Rice Lake RL77032SS HE
- Rice Lake RL75016S-W
- VPG Sensortronics 65016
Documentation
2 year limited manufacturer's warranty
- Capacity:
- 2500 lb
- Safe Overload:
- 150% capacity
- Rated Excitation:
- 5 to 10 VDC
- Full Scale Output:
- 3 mV/V
- Output Resistance:
- 700 +/- 5 ohms
- Input Resistance:
- 770 +/- 10 ohms
- Insulation Resistance:
- 5000 megohms
- Construction:
- Stainless Steel
- Seal Type:
- Environmentally sealed
- IP Rating:
- IP67
- Cable Length:
- 25 ft
- Approvals:
- FM
- Cable Color Code:
- Red = + Excitation, Black = - Excitation, Green = + Signal, White = - Signal
- Manufacturer:
- Rice Lake Weighing Systems
- Model:
- RL77032SS 2500 lb
- Part Number:
- 221551
