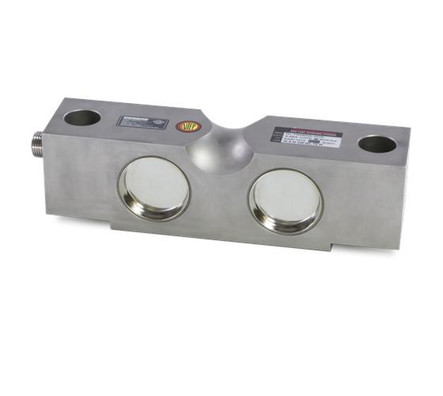

Rice Lake RL75060S-100K 100,000lb Stainless Steel Double Ended Beam Load Cell, NTEP
The Rice Lake RL75060S stainless steel double ended beam load cells are designed for center-link loading. The RL75060S is most commonly used in truck and railroad scale applications. The RL75060S series load cells have a non threaded hole, come with a 35 ft load cell cable, and are constructed of stainless steel. The RL75060S is NTEP approved Class III 1:5000 / 1:10,000 for legal for trade applications.
RL75060S load cells are used in the following Rice Lake Weighing module kit: 2100HE, MVS, and TSA module kits. The RL75060S load cells are interchangeable with VPG Sensortronics 65058S load cells.
Features
- 100,000 lb capacity rating
- NTEP approved Class III 1:5000 / 1:10,000
- Stainless steel construction
- Welded seal IP 67 rating
- 3 mV/V output
- Load cell cable length 35 ft
- 2 year limited manufacturer's warranty
- Safe overload up to 150% capacity
- Safe sideload up to 100% capacity
2 year limited manufacturer's warranty
- Manufacturer:
- Rice Lake Weighing Systems
- Model:
- RL75060S-100K
- Part Number:
- 50564
- Certification:
- NTEP certified Class III 1:5000 / 1:10,000
- Other Approvals:
- cFM, CE, Waterproof
- Capacity Rating:
- 100,000 lb / 45,359.4 kg
- Safe Overload:
- 150% capacity
- Safe Side Load:
- 100 % capacity
- Length:
- 10.25"
- Width:
- 2.44"
- Height:
- 2.65"
- Conduit adapter:
- 1/2 14 NTP
- Hole Threading:
- thru hole
- Construction / Finish:
- Stainless Steel
- Cable Color Code:
- Red = + Excitation, Black = - Excitation, Green = + Signal, White = - Signal
- Rated Excitation:
- 5-10 VDC (maximum of 15 V)
- Full Scale Output:
- 3.0 mV/V
- Output Resistance:
- 699-707 ohms
- Input Resistance:
- 686-714 ohms
- Insulation Resistance:
- 1000 megohms
- Nonlinearity:
- 0.03% full scale
- Hysteresis:
- 0.02% full scale
- Operating Temperature Range:
- -40°F to 150°F / -40°C to 65°C
- Compensated Temperature Range:
- 14°F to 104°F / -10°C to 40°C
- Seal Type:
- IP67 Welded Seal
- Cable Length:
- 35 ft
- Cable Diameter:
- 0.305 polyurethane jacket
- Interchangeable Products:
- VPG Sensortronics 65058S load cells
