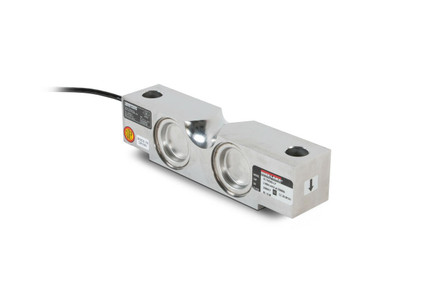

The Rice Lake RL75058S-LP double ended beam load cell is constructed of stainless steel and is backed with a IP69K rating for use in washdown and corrosive applications. Their double-ended beam design ensures uniform load distribution, minimizing eccentric load effects and improving overall weighing accuracy. The RL75058S-LP is commonly used with tank scale, truck scales, and hoppers.
Features
- Stainless steel construction
- Hermetically sealed
- IP 69K rating
- Load cell cable length 60 ft
- Safe overload up to 150% capacity
- FM approved
Interchange
- RICE LAKE WEIGHING SYSTEMS RL75058
- VPG SENSORTRONICS 65058s
Documentation
2 year limited manufacturer's warranty
- Capacity:
- 75,000 lb
- NTEP:
- Yes
- Class:
- IIIL
- CC:
- 20-081
- Safe Overload:
- 150% capacity
- Cable Color Code:
- Red = + Excitation, Black = - Excitation, Green = + Signal, White = - Signal
- Rated Excitation:
- 5 to 10 VDC (Maximum of 15V)
- Full Scale Output:
- 3 mV/V
- Input Resistance:
- 700 +/- 14 ohms
- Output Resistance:
- 700 +/- 7 ohms
- Insulation Resistance:
- 5000 megohms
- Construction:
- Stainless steel
- Seal Type:
- Hermetically sealed
- IP Rating:
- IP69K
- Combined Error:
- +/- 0.02% full scale
- Cable Length:
- 60 ft
- Approvals:
- FM
- Part Number:
- 197802
- Manufacturer:
- Rice Lake Weighing Systems
- Model:
- RL75058S-LP
