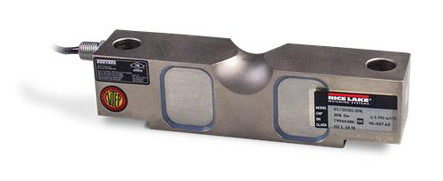

Rice Lake RL75058-LP-50K 50,000lb Double Ended Beam Load Cell, NTEP
The Rice Lake RL75058-LP double ended beam load cells are designed for center-link loading. The RL75058-LP is most commonly used in truck and railroad scale applications. The RL75058-LP series load cells have a non threaded hole, come with a 35 ft (60 ft and 100 ft cables also available) load cell cable, and are constructed of alloy steel that is nickle plated with stainless steel side plates. The RL75058-LP is NTEP approved for legal for trade applications.
RL75058-LP load cells are used in the following Rice Lake Weighing module kit: 2100HE and MVS module kits. The RL75058-LP load cells are interchangeable with VPG Sensortronics 65058A, VPG Celtron CLB, and Rice Lake RL75058I load cells.
Features
- 50,000 lb capacity rating
- NTEP approved
- Alloy steel construction, nickle plated, stainless steel side plates
- Environmentally sealed IP 67 rating
- 3 mV/V output
- Load cell cable length 35 ft
- 2 year limited manufacturer's warranty
- Safe overload up to 150% capacity
- Safe sideload up to 100% capacity
Documentation
2 year limited manufacturer's warranty
- Manufacturer:
- Rice Lake Weighing Systems
- Model:
- RL75058-LP-50K
- Part Number:
- 197773
- NTEP:
- Yes
- Other Approvals:
- cFM, CE
- Capacity:
- 50,000 lb
- Safe Overload:
- 150% capacity
- Safe Side Load:
- 100 % capacity
- Length:
- 10.25"
- Width:
- 2.44"
- Height:
- 2.65"
- Conduit adapter:
- 1/2 14 NTP
- Hole Threading:
- thru hole
- Construction / Finish:
- Alloy steel with nickle plating
- Cable Color Code:
- Red = + Excitation, Black = - Excitation, Green = + Signal, White = - Signal
- Rated Excitation:
- 5-10 VDC (maximum of 15 V)
- Full Scale Output:
- 3.0 mV/V
- Output Resistance:
- 770 (± 5) ohms
- Input Resistance:
- 770 (± 10) ohms
- Insulation Resistance:
- 5000 megohms
- Seal Type:
- IP67 Environmentally Sealed
- Cable Length:
- 35 ft
- Cable Diameter:
- 0.305 polyurethane jacket
- Interchangeable Products:
- Rice Lake RL75058I, VPG Sensortronics 65058A, VPG Celtron CLB load cells
