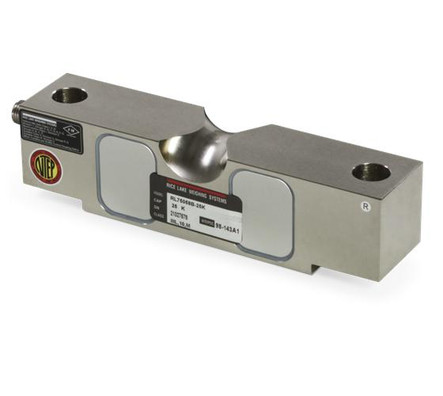

Rice Lake RL75058I-75K 75,000lb Double Ended Beam Load Cell, NTEP
Discontinued/Limited Stock: Replaced by Rice Lake RL75058-LP-75K
The Rice Lake RL75058I double ended beam load cells are designed for center-link loading. The RL75058I is most commonly used in truck and railroad scale applications. The RL75058I series load cells have a non threaded hole, come with a 100 ft load cell cable, and are constructed of alloy steel that is nickle plated with stainless steel side plates. The RL75058I is NTEP approved Class III 1:10,000 for legal for trade applications.
RL75058I load cells are used in the following Rice Lake Weighing module kit: 2100HE, MVS, and TSA module kits. The RL75058 load cells are interchangeable with VPG Sensortronics 65058A and VPG Celtron CLB load cells.
Features
- This model is used in RL Truck scales
- 75,000 lb capacity rating
- NTEP approved Class III 1:10,000
- Alloy steel construction, nickle plated, stainless steel side plates
- Environmentally sealed IP 67 rating
- 3 mV/V output
- Load cell cable length 100 ft
- 2 year limited manufacturer's warranty
- Safe overload up to 150% capacity
- Safe sideload up to 100% capacity
2 year limited manufacturer's warranty
- Manufacturer:
- Rice Lake Weighing Systems
- Model:
- RL75058I-75K
- Part Number:
- 74725
- Certification:
- NTEP certified Class III 1:10,000
- Other Approvals:
- cFM, CE
- Capacity Rating:
- 75,000 lb / 34,019.4 kg
- Safe Overload:
- 150% capacity
- Safe Side Load:
- 100 % capacity
- Length:
- 10.25"
- Width:
- 2.44"
- Height:
- 2.65"
- Conduit adapter:
- 1/2 14 NTP
- Hole Threading:
- thru hole
- Construction / Finish:
- Alloy steel with nickle plating
- Cable Color Code:
- Red = + Excitation, Black = - Excitation, Green = + Signal, White = - Signal
- Rated Excitation:
- 5-10 VDC (maximum of 15 V)
- Full Scale Output:
- 3.0 mV/V
- Output Resistance:
- 700 (± 5) ohms
- Input Resistance:
- 770 (± 10) ohms
- Insulation Resistance:
- 5000 megohms
- Nonlinearity:
- 0.03% full scale
- Hysteresis:
- 0.02% full scale
- Operating Temperature Range:
- -40°F to 150°F / -40°C to 65°C
- Compensated Temperature Range:
- 14°F to 104°F / -10°C to 40°C
- Seal Type:
- IP67 Environmentally Sealed
- Cable Length:
- 100 ft
- Cable Diameter:
- 0.305 polyurethane jacket
- Interchangeable Products:
- VPG Sensortronics 65058A and VPG Celtron CLB load cells
