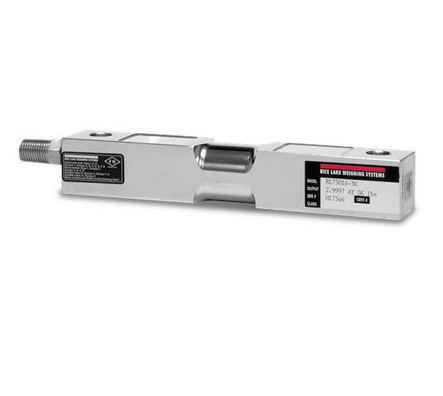

Rice Lake RL75016-50K 50,000lb Double Ended Beam Load Cell
The Rice Lake RL75016 double ended beam load cells are designed with center loading which is most commonly used in applications such as tank, hopper, and truck scales. The RL75016 series load cells have a non threaded hole, come with a 25 ft load cell cable, and are constructed of alloy steel with nickle plating.
RL75016 load cells are used in the following Rice Lake Weighing module kit: RL1600 Series. The RL75016 load cells are interchangeable with VPG Sensortronics 65016, VPG Revere 5203, and VPG Celtron DSR load cells.
Features
- 50,000 lb capacity rating
- Alloy steel construction, nickle plated
- Environmentally sealed IP 67 rating
- 3 mV/V output
- Load cell cable length 25 ft
- 2 year limited manufacturer's warranty
- Safe overload up to 150% capacity
- Safe sideload up to 100% capacity
- Load cell is not NTEP approved for legal for trade applications
2 year limited manufacturer's warranty
- Manufacturer:
- Rice Lake Weighing Systems
- Model:
- RL75016-50K
- Part Number:
- 17319
- Certification:
- Not NTEP certified
- Other Approvals:
- cFM, CE
- Capacity Rating:
- 50,000 lb / 22,679.6 kg
- Safe Overload:
- 150% capacity
- Safe Side Load:
- 100 % capacity
- Length:
- 13.5"
- Width:
- 2.44"
- Height:
- 2.94"
- Conduit adapter:
- 1/2 14 NTP
- Hole Threading:
- thru hole
- Construction / Finish:
- Alloy steel with nickle plating
- Cable Color Code:
- Red = + Excitation, Black = - Excitation, Green = + Signal, White = - Signal
- Rated Excitation:
- 5-10 VDC (maximum of 15 V)
- Full Scale Output:
- 3.0 mV/V
- Output Resistance:
- 700 (± 5) ohms
- Input Resistance:
- 770 (± 10) ohms
- Insulation Resistance:
- 5000 megohms
- Nonlinearity:
- 0.03% full scale
- Hysteresis:
- 0.02% full scale
- Operating Temperature Range:
- -40° F to 150° F / -40°C to 65°C
- Seal Type:
- IP67 Environmentally Sealed
- Deflection at Capacity:
- 0.052"
- Cable Length:
- 25 ft
- Cable Diameter:
- 0.305 polyurethane jacket
- Interchangeable Products:
- VPG Sensortronics 65016, VPG Revere 5203, and VPG Celtron DSR load cells
