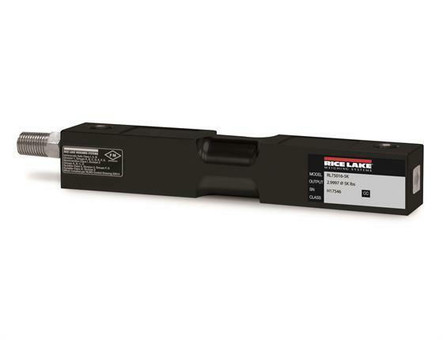

The Rice Lake RL75016 double ended beam load cells are designed with center loading which is most commonly used in applications such as tank, hopper, and truck scales. This Rice Lake series of load cells have a non threaded hole, come with a 25 ft load cell cable, and are constructed of painted alloy steel.
Features
- Painted with a proprietary coating for extra protection in dry chemical applications
- Alloy steel construction
- Environmentally sealed IP 67 rating
- Load cell cable length 25 ft
- Safe overload up to 150% capacity
Interchange
- VPG Sensortronics 65016
- VPG Revere 5203
- VPG Celtron DSR
Documentation
2 year limited manufacturer's warranty
- Capacity:
- 1500 lb
- Safe Overload:
- 150% capacity
- Safe Side Load:
- 100 % capacity
- Cable Color Code:
- Red = + Excitation, Black = - Excitation, Green = + Signal, White = - Signal
- Rated Excitation:
- 5-10 VDC (maximum of 15 V)
- Full Scale Output:
- 3.0 mV/V
- Output Resistance:
- 700 (± 5) ohms
- Input Resistance:
- 770 (± 10) ohms
- Insulation Resistance:
- 5000 megohms
- Construction:
- Alloy steel
- Finish:
- MLC coated / Painted
- IP Rating:
- IP67
- Seal Type:
- Environmentally sealed
- Cable Length:
- 25 ft
- Other Approvals:
- cFM
- Part Number:
- 187059
- Manufacturer:
- Rice Lake Weighing Systems
- Model:
- RL75016-1.5K-Painted
