Discontinued by the Manufacturer

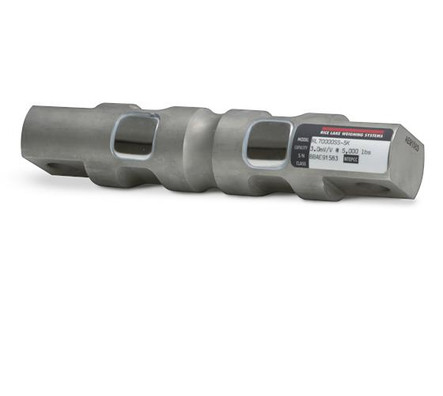

The Rice Lake RL70000SS double ended beam load cells are designed with center loading which is most commonly used in applications such as tank, hopper, and truck scales. The RL70000SS series load cells have a non threaded hole, come with a 30 ft load cell cable, and are constructed of stainless steel. The NTEP approved models are from 10,000 lb to 100,000 lb capacities.
RL70000SS load cells are used in the following Rice Lake Weighing module kit: EZ Mount 1. The RL70000SS load cells are interchangeable with Mettler Toledo SLD 530and VPG Revere 9103 load cells.
Features
- NTEP approved
- 30,000 lb capacity rating
- Stainless steel construction
- Environmentally sealed IP 67 rating
- 3 mV/V output
- Load cell cable length 30 ft
- 2 year limited manufacturer's warranty
- NTEP Approved
- Safe overload up to 150% capacity
- Safe sideload up to 100% capacity
2 year limited manufacturer's warranty
- Manufacturer:
- Rice Lake Weighing Systems
- Model:
- RL70000SS-30K
- Part Number:
- 30434
- Certification:
- NTEP Certified 1:5000 III / 1:10,000 IIIL
- Other Approvals:
- cFM, CE
- Capacity Rating:
- 30,000 lb / 13,607.8 kg
- Safe Overload:
- 150% capacity
- Safe Side Load:
- 100 % capacity
- Length:
- 10.25"
- Diameter:
- 3.2"
- Conduit adapter:
- 1/2 14 NTP
- Hole Threading:
- thru hole
- Construction / Finish:
- Stainless steel
- Cable Color Code:
- Red = + Excitation, Black = - Excitation, Green = + Signal, White = - Signal, Orange = Shield
- Rated Excitation:
- 5-10 VDC (maximum of 15 V)
- Full Scale Output:
- 3.0 mV/V
- Output Resistance:
- 700 (± 7) ohms
- Input Resistance:
- 700 (± 7) ohms
- Insulation Resistance:
- 5000 megohms
- Compensated Temperature Range:
- 14° F to 104° F / -10°C to 40°C
- Operating Temperature Range:
- -40° F to 150° F / -40°C to 65°C
- Seal Type:
- IP67 Environmentally Sealed
- Combined Error:
- 0.03 % full scale
- Non-Reputability:
- 0.02 % full scale
- Deflection at Capacity:
- 0.02"
- Cable Length:
- 30 ft
- Cable Diameter:
- 0.295
- Interchangeable Products:
- Mettler Toledo SLD 530and VPG Revere 9103 load cells
