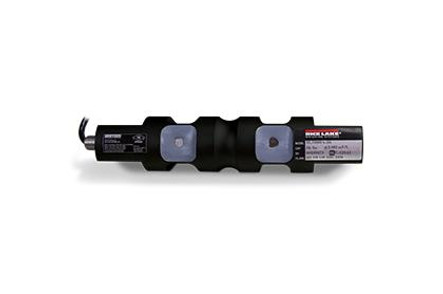

The Rice Lake RL70000 double ended beam load cells are designed with center loading which is most commonly used in applications such as tank, hopper, and truck scales. The RL70000 series load cells have a non threaded hole, come with a 30 ft load cell cable, and are constructed of nickel plated alloy steel.
Features
- MLC coated for extra corrosion protection
- High alloy steel construction, nickel plated
- Environmentally sealed IP 67 rating
- Load cell cable length 30 ft
- Safe overload up to 150% capacity
Interchange
- Rice Lake 72020P
- Rice Lake 70000
- Rice Lake 72020
Documentation
Rice Lake RL70000 Painted Load Cell Data Sheet
2 year limited manufacturer's warranty
- Capacity:
- 250,000 lb
- NTEP:
- Yes
- Class:
- III/IIIL
- CC:
- 97-125
- Safe Overload:
- 150% capacity
- Safe Side Load:
- 100 % capacity
- Cable Color Code:
- Red = + Excitation, Black = - Excitation, Green = + Signal, White = - Signal
- Rated Excitation:
- 5-10 VDC (maximum of 15 V)
- Full Scale Output:
- 3.0 mV/V
- Output Resistance:
- 700 (± 5) ohms
- Input Resistance:
- 700 (± 14) ohms
- Insulation Resistance:
- 5000 megohms
- Construction / Finish:
- High-alloy steel, nickel plated
- Coating:
- MLC coated
- IP Rating:
- IP67
- Seal Type:
- Environmentally sealed
- Combined Error:
- 0.02 % full scale
- Cable Length:
- 30 ft
- Approvals:
- FM
- Part Number:
- 198206
- Manufacturer:
- Rice Lake Weighing Systems
- Model:
- RL70000B-250K
