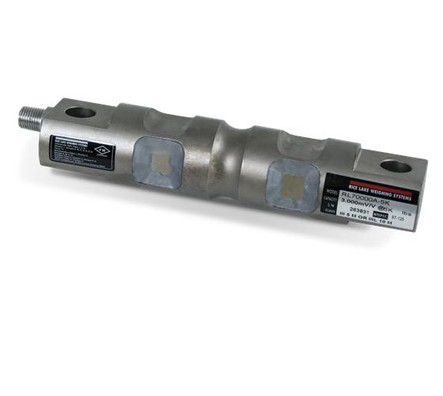

Rice Lake RL70000-30K 30,000 lb Double Ended Beam Load Cell
The Rice Lake RL70000 double ended beam load cells are designed with center loading which is most commonly used in applications such as tank, hopper, and truck scales. The RL70000 series load cells have a non threaded hole, come with a 30 ft load cell cable, and are constructed of nickel plated alloy steel. They are NTEP approved models are from 5000 lb to 200,000 lb capacities.
RL70000 load cells are used in the following Rice Lake Weighing module kit: EZ Mount 1. The RL70000 load cells are interchangeable with VPG Celtron CSB, Mettler Toledo SLD 430, VPG Revere 5103, and the Artech 70210 load cells.
Features
- 30,000 lb capacity rating
- High alloy steel construction, nickel plated
- Environmentally sealed IP 67 rating
- 3 mV/V output
- Load cell cable length 30 ft
- 2 year limited manufacturer's warranty
- NTEP Approved
- Safe overload up to 150% capacity
- Safe sideload up to 100% capacity
2 year limited manufacturer's warranty
- Manufacturer:
- Rice Lake Weighing Systems
- Model:
- RL70000-30K
- Part Number:
- 36266
- Certification:
- NTEP Certified 1:10,000 IIIL
- Other Approvals:
- cFM, CE
- Capacity Rating:
- 30,000 lb / 13,607.8 kg
- Safe Overload:
- 150% capacity
- Safe Side Load:
- 100 % capacity
- Length:
- 10.25"
- Diameter:
- 3.2"
- Conduit adapter:
- 1/2 14 NTP
- Hole Threading:
- thru hole
- Construction / Finish:
- High-alloy steel, nickel plated
- Cable Color Code:
- Red = + Excitation, Black = - Excitation, Green = + Signal, White = - Signal
- Rated Excitation:
- 5-10 VDC (maximum of 15 V)
- Full Scale Output:
- 3.0 mV/V
- Output Resistance:
- 700 (± 5) ohms
- Input Resistance:
- 770 (± 10) ohms
- Insulation Resistance:
- 5000 megohms
- Compensated Temperature Range:
- 14° F to 104° F / -10°C to 40°C
- Operating Temperature Range:
- -40° F to 150° F / -40°C to 65°C
- Seal Type:
- IP67 Environmentally Sealed
- Combined Error:
- 0.03 % full scale
- Non-Reputability:
- 0.02 % full scale
- Deflection at Capacity:
- 0.02"
- Cable Length:
- 30 ft
- Cable Diameter:
- 0.305 polyurethane jacket
- Interchangeable Products:
- VPG Celtron CSB, Mettler Toledo SLD 430, VPG Revere 5103, and the Artech 70210 load cells
