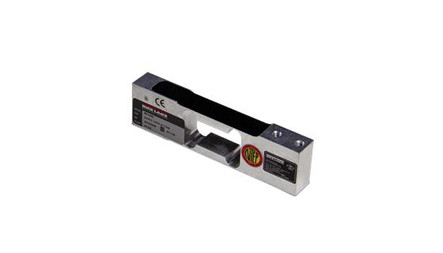

Rice Lake RL42018A-1kg Single Point Load Cell
The Rice Lake RL42018A single point load cells are constructed of aluminum and is IP66 rated. The RL42018A load cells are NTEP Class III approved for legal for trade applications.
RL42018A load cells are interchangeable with HBM SP4, Flintec PC 42, VPG Tedea-Huntleigh 1042, Rice Lake Weighing Systems RLSP4, and Rice Lake Weighing Systems RL1042 load cells.
Features
- 1 kg / 2.2 lb capacity rating
- Aluminum construction
- Environmentally sealed IP66
- 2 year limited manufacturer's warranty
- NTEP Class III approved
- Safe overload up to 150% capacity over center loading pin
- 10 ft of cable
- Max platform size of 16 in x 16 in
2 year limited manufacturer's warranty
- Manufacturer:
- Rice Lake Weighing Systems
- Model:
- RL42018A-1kg
- Approvals:
- FM, NTEP
- Certification:
- NTEP Certified 1:5000 III
- Capacity Rating:
- 1 kg / 2.2 lb
- Safe Overload:
- 150% capacity
- Overall Length (A):
- 150 mm
- Length (B):
- 100 mm
- Length (C):
- 19.0 mm
- Width (D):
- 25.4 mm
- Height (E):
- 40.0 mm
- Length (F):
- 31.2 mm
- Length(G):
- 34.0 mm
- Thredding (H):
- 1/4-20 UNC
- Construction / Finish:
- Aluminum
- Cable Color Code:
- Green = + Excitation, Black =- Excitation, Blue = + Sense, Yellow = - Sense, Red = + Signal, White =- Signal
- Rated Excitation:
- 5-10 VDC (15 V maximum)
- Full Scale Output:
- 2 mV/V
- Output Resistance:
- 350 (± 3) ohm
- Input Resistance:
- 400 (± 20) ohm
- Insulation Resistance:
- > 5,000 megohms
- Compensated Temperature Range:
- 14° F to 104° F / -10°C to 40°C
- Operating Temperature Range:
- -40° F to 150° F / -40°C to 65°C
- Seal Type:
- Environmentally sealed IP66
- Total Error:
- 0.02 % full scale
- Deflection at Capacity:
- 0.015 in (0.4 mm)
- Cable Length:
- 10 ft
- Cable Diameter:
- 0.200 PVC jacket
- Max Platform Size:
- 16" x 16"
