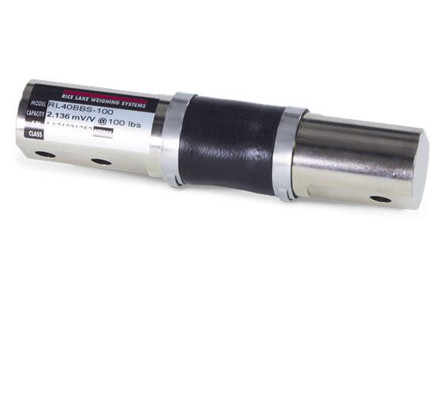

Rice Lake RL40BBS-500lb 500 lb Single Ended Beam Load Cell
Rice Lake RL40BBS single ended beam load cells are most commonly used in precision force and weight measurement. The RL40BBS load cell has a thru-hole, 10 ft load cell cable, and is constructed of nickel plated alloy steel. Load cell is not NTEP approved for legal for trade applications.
The RL40BBS load cells are interchangeable with HBM BBS, VPG Sensortronics 65087, Artech 40310, Fairbanks 3-481XX-1, and Fairbanks 3-48660-1 load cells.
Features
- 500 lb capacity rating
- High alloy steel construction, nickel plated
- IP 65 rating
- 2 mV/V output
- Load cell cable length 10 ft
- 2 year limited manufacturer's warranty
- Not NTEP Approved
- Safe overload up to 150% capacity
2 year limited manufacturer's warranty
- Manufacturer:
- Rice Lake Weighing Systems
- Model:
- RL40BBS-500lb
- Part Number:
- 17398
- Certification:
- not NTEP certified
- Other Approvals:
- CE
- Capacity Rating:
- 500 lb / 226.8 kg
- Safe Overload:
- 150% capacity
- Length:
- 6.63"
- Height:
- 1.06"
- Hole Threading:
- Thru hole
- Construction / Finish:
- High-alloy steel, nickel plated
- Cable Color Code:
- Green = + Excitation, Black = - Excitation, White = + Signal, Red = - Signal
- Rated Excitation:
- 5-10 VDC (maximum of 15 V)
- Full Scale Output:
- 2.0 mV/V
- Input Resistance:
- 750 ohms nominal
- Bridge Resistance:
- 5000 megohms
- Operating Temperature Range:
- -40° F to 150° F / -40°C to 65°C
- Seal Type:
- IP65
- Nonlinearity:
- 0.03 % full scale
- Hysteresis:
- 0.02 % full scale
- Deflection at Capacity:
- 0.02"
- Cable Length:
- 10 ft
- Cable Diameter:
- 0.200 polyurethane jacket
- Interchangeable Products:
- HBM BBS, VPG Sensortronics 65087, Artech 40310, Fairbanks 3-481XX-1, and Fairbanks 3-48660-1 load cells
