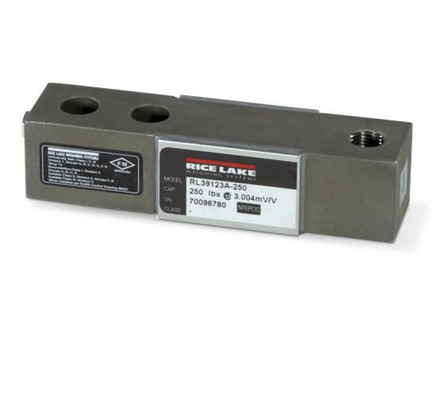

Rice Lake RL39123-10K 10,000 lb Stainless Steel Single Ended Beam Load Cell
Rice Lake RL39123 stainless steel single ended beam load cells are most commonly used in platform scales and other medium capacity weighing applications. The RL39123 load cells have threaded holes, 20 ft of load cell cable, and are constructed of stainless steel.
The RL39123 is used in the Rice Lake Weighing System Modules RL50210 TA and RL1800 Series.
Features
- 10,000 lb capacity rating
- Stainless steel construction
- IP 67 rating
- 3 mV/V output
- Load cell cable length 20 ft
- 2 year limited manufacturer's warranty
- Safe overload up to 150% capacity
2 year limited manufacturer's warranty
- Manufacturer:
- Rice Lake Weighing Systems
- Model:
- RL39123-10K
- Part Number:
- 17395
- Certification:
- Load Cell is not NTEP Certified
- Other Approvals:
- cFM, CE
- Capacity Rating:
- 10,000 lb / 4535.9 kg
- Safe Overload:
- 150% capacity
- Safe Sideload:
- 100% capacity
- Length:
- 6.75"
- Width:
- 1.5"
- Height:
- 1.5"
- Hole Threading:
- 3/4-16 UNF-2B
- Construction / Finish:
- Stainless steel
- Cable Color Code:
- Red = + Excitation, Black = - Excitation, Green = + Signal, White = - Signal
- Rated Excitation:
- 5-10 VDC (maximum of 15 V)
- Full Scale Output:
- 3.0 mV/V
- Output Resistance:
- 349 - 355 ohms
- Input Resistance:
- 343 - 357 ohms
- Insulation Resistance:
- 5000 megohms
- Operating Temperature Range:
- -40° F to 150° F / -40°C to 65°C
- Seal Type:
- IP67 Environmentally Sealed
- Nonlinearity:
- 0.03 % full scale
- Hysteresis:
- 0.02 % full scale
- Deflection at Capacity:
- 0.032"
- Cable Length:
- 20 ft
- Cable Diameter:
- 0.200 polyurethane jacket
- Interchangeable Products:
- VPG Revere 9123, Artech SS30310
