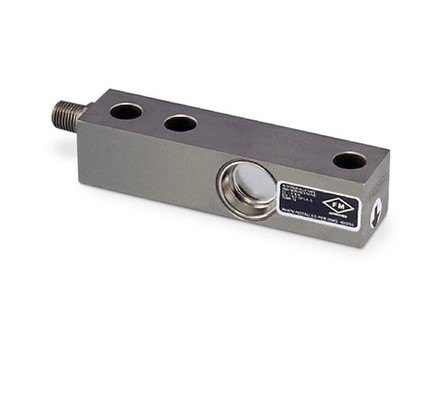

Rice Lake RL35082-N5-2.5K 2500 lb Stainless Steel Single Ended Beam Load Cell
Discontinued - Replacement Part is RL32218S-HE 2500 lb
Rice Lake RL35082 stainless steel single ended beam load cells are most commonly used in platform scales and other medium capacity weighing applications. The RL35082 load cell has a threaded hole, 20 ft load cell cable, and is constructed of stainless steel. The RL35082 has a welded seal strain guage with an IP67 rating and is manufactured so that it is capable of being installed with a 1/4-18NPT conduit adapter.
RL35082 load cells are used in some of the following Rice Lake Weighing module kits: RL1800 and RL50210 TA Series. The RL35082 load cells are interchangeable with VPG Sensortronics 65083S load cells.
Features
- 2500 lb capacity rating
- Stainless steel
- IP 67 rating
- 2 mV/V output
- Load cell cable length 20 ft
- 2 year limited manufacturer's warranty
- Safe overload up to 150% capacity
- Safe sideload up to 100% capacity
- 1/4 - 18NPT conduit adapter size
2 year limited manufacturer's warranty
- Manufacturer:
- Rice Lake Weighing Systems
- Model:
- RL35082-N5-2.5K
- Part Number:
- 31282
- Certification:
- NTEP Certified 1:5,000 III
- Other Approvals:
- cFM, CE, Water Proof
- Capacity Rating:
- 2500 lb / 1134 kg
- Safe Overload:
- 150% capacity
- Safe Side Load:
- 100 % capacity
- Length:
- 5.12"
- Width:
- 1.22"
- Height:
- 1.22"
- Hole Threading:
- 1/2-20 UNF-2B
- Construction / Finish:
- Stainless steel
- Cable Color Code:
- Red = + Excitation, Black = - Excitation, Green = + Signal, White = - Signal
- Rated Excitation:
- 5-10 VDC (maximum of 15 V)
- Full Scale Output:
- 2.0 mV/V
- Output Resistance:
- 349 - 355 ohms
- Input Resistance:
- 343 - 357 ohms
- Insulation Resistance:
- 5000 megohms
- Operating Temperature Range:
- -40° F to 150° F / -40°C to 65°C
- Compensated Temperature Range:
- 14° F to 104° F / -10°C to 40°C
- Seal Type:
- IP67 welded seal
- Combined Error:
- 0.02% full scale
- Non-repeatability:
- 0.01 % full scale
- Deflection at Capacity:
- 0.012"
- Cable Length:
- 20 ft
- Cable Diameter:
- 0.220 PTFE coated cable
- Interchangeable Products:
- VPG Sensortronics 65083S
