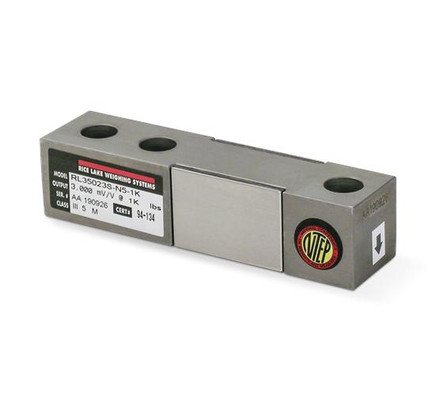

Rice Lake RL35023S-1000lb 1000 lb Stainless Steel Single Ended Beam Load Cell
Discontinued - Replaced by RL32018S 1,000 lb Part Number 189164
Rice Lake RL35023S single ended beam load cells are most commonly used in platform scales and other medium capacity weighing applications. The RL35023S load cell has a threaded hole, 20 ft load cell cable, and is constructed of stainless steel. NTEP approved models are from 1000 lb to 10,000 lb capacities.
RL35023S load cells are used in some of the following Rice Lake Weighing module kits: RL1800 and RL50210 TA Series. The RL35023S load cells are interchangeable with VPG Celtron SQB-HSS, VPG Sensortronics 65023S, and VPG Sensortronics 65023 SS load cells.
Features
- 1000 lb capacity rating
- Stainless steel construction
- IP 67 rating
- 3 mV/V output
- Load cell cable length 20 ft
- 2 year limited manufacturer's warranty
- NTEP Approved
- Safe overload up to 150% capacity
- Safe sideload up to 100% capacity
2 year limited manufacturer's warranty
- Manufacturer:
- Rice Lake Weighing Systems
- Model:
- RL35023S-1000lb
- Part Number:
- 30649
- Certification:
- NTEP Certified 1:5,000 III
- Other Approvals:
- cFM, CE
- Capacity Rating:
- 1000 lb / 453.6 kg
- Safe Overload:
- 150% capacity
- Safe Side Load:
- 100 % capacity
- Length:
- 5.12"
- Width:
- 1.25"
- Height:
- 1.25"
- Hole Threading:
- 1/2-20 UNF-2B
- Construction / Finish:
- Stainless steel
- Cable Color Code:
- Red = + Excitation, Black = - Excitation, Green = + Signal, White = - Signal
- Rated Excitation:
- 5-10 VDC (maximum of 15 V)
- Full Scale Output:
- 3.0 mV/V
- Output Resistance:
- 349 - 355 ohms
- Input Resistance:
- 343 - 357 ohms
- Insulation Resistance:
- 5000 megohms
- Compensated Temperature Range:
- 14‚° F to 104‚° F / -10‚°C to 40‚°C
- Operating Temperature Range:
- -40‚° F to 150‚° F / -40‚°C to 65‚°C
- Seal Type:
- IP67 Environmentally Sealed
- Nonlinearity:
- 0.03 % full scale
- Hysteresis:
- 0.02 % full scale
- Deflection at Capacity:
- 0.013"
- Cable Length:
- 20 ft
- Cable Diameter:
- 0.200 polyurethane jacket
- Interchangeable Products:
- VPG Celtron SQB-HSS, VPG Sensortronics 65023S, and VPG Sensortronics 65023 SS
