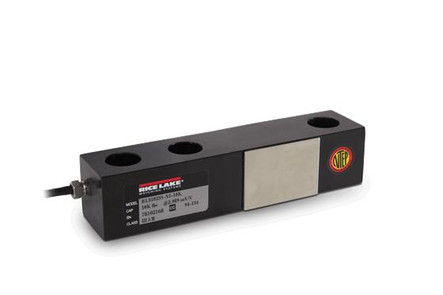

Rice Lake RL35023S-1000lb 1000 lb Stainless Steel Painted Single Ended Beam Load Cell
Rice Lake RL35023S painted single ended beam load cells are most commonly used in platform scales and other medium capacity weighing applications. The RL35023S load cell has a threaded hole, 20 ft load cell cable, and is constructed of stainless steel. NTEP approved models are from 1000 lb to 10,000 lb capacities. The RL35023S painted version is designed to better protect the stainless steel load cell in dry chemical areas that could cause corrosion especially fertilizer.
RL35023S load cells are used in some of the following Rice Lake Weighing module kits: RL1800 and RL50210 TA Series. The RL35023S load cells are interchangeable with VPG Celtron SQB-HSS, VPG Sensortronics 65023S, and VPG Sensortronics 65023 SS load cells.
Features
- 1000 lb capacity rating
- Stainless steel construction with a coating of paint
- IP 67 rating
- 3 mV/V output
- Load cell cable length 20 ft
- 2 year limited manufacturer's warranty
- NTEP Approved
- Safe overload up to 150% capacity
- Safe sideload up to 100% capacity
2 year limited manufacturer's warranty
- Manufacturer:
- Rice Lake Weighing Systems
- Model:
- RL35023S-1000lb Painted
- Part Number:
- 182754
- Certification:
- NTEP Certified 1:5,000 III
- Other Approvals:
- cFM, CE
- Capacity Rating:
- 1000 lb / 453.6 kg
- Safe Overload:
- 150% capacity
- Safe Side Load:
- 100 % capacity
- Length:
- 5.12"
- Width:
- 1.25"
- Height:
- 1.25"
- Hole Threading:
- 1/2-20 UNF-2B
- Construction / Finish:
- Stainless steel with a coating of paint
- Cable Color Code:
- Red = + Excitation, Black = - Excitation, Green = + Signal, White = - Signal
- Rated Excitation:
- 5-10 VDC (maximum of 15 V)
- Full Scale Output:
- 3.0 mV/V
- Output Resistance:
- 349 - 355 ohms
- Input Resistance:
- 343 - 357 ohms
- Insulation Resistance:
- 5000 megohms
- Compensated Temperature Range:
- 14° F to 104° F / -10°C to 40°C
- Operating Temperature Range:
- -40° F to 150° F / -40°C to 65°C
- Seal Type:
- IP67 Environmentally Sealed
- Nonlinearity:
- 0.03 % full scale
- Hysteresis:
- 0.02 % full scale
- Deflection at Capacity:
- 0.013"
- Cable Length:
- 20 ft
- Cable Diameter:
- 0.200 polyurethane jacket
- Interchangeable Products:
- VPG Celtron SQB-HSS, VPG Sensortronics 65023S, and VPG Sensortronics 65023 SS
