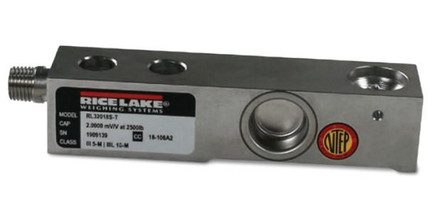

The Rice Lake Weighing Systems RL32018S-T is the direct replacement for the RL30745 series of load cells. It is commonly used in the RLTM weighing module and is available with either 15 foot or 30 foot cables. This series boasts superior durability with its IP69K washdown rating and hermetically sealed design. The RL32018S-T is FM approved and NTEP certified.
Features
- Stainless steel construction
- Hermetically sealed
- IP 69K rating
- 2 mV/V output
- Load cell cable length 30 ft
- Safe overload up to 150% capacity
- FM approved
Interchange
- METTLER-TOLEDO TB600529-500 lb
- METTLER-TOLEDO TB600363-1,250 lb
- METTLER-TOLEDO TB600342-2,500 lb
- METTLER-TOLEDO TB600343-5,000 lb
- METTLER-TOLEDO TB600364-10,000 lb
- HBK THC
Documentation
2 year limited manufacturer's warranty
- Capacity:
- 500 lb
- NTEP:
- Yes
- Class:
- III
- CC:
- 18-106
- Safe Overload:
- 150% capacity
- Length:
- 5.25"
- Width:
- 1.21"
- Height:
- 1.19"
- Cable Color Code:
- Green = + Excitation, Black = - Excitation, White = + Signal, Red = - Signal
- Rated Excitation:
- 5 to 10 VDC
- Full Scale Output:
- 2 mV/V
- Input Resistance:
- 350 +/- 3 ohms
- Output Resistance:
- 400 +/- 20 ohms
- Insulation Resistance:
- 5000 megohms
- Construction:
- Stainless Steel
- Seal Type:
- Hermetically Sealed
- IP Rating:
- IP69K
- Combined Error:
- +/- 0.017% full scale
- Cable Length:
- 30 ft
- Part Number:
- 191974
- Approvals:
- FM
- Manufacturer:
- Rice Lake Weighing Systems
- Model:
- RL32018S-T
