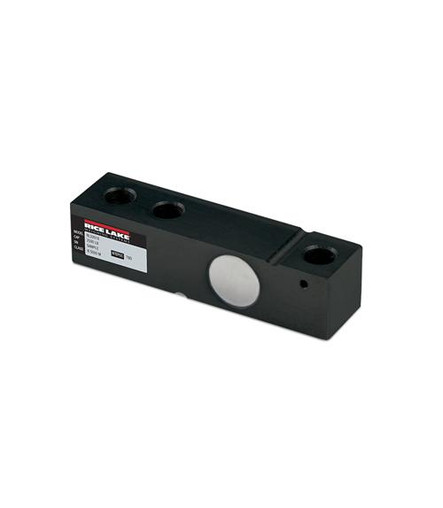

The Rice Lake RL32018 painted alloy steel single ended beam load cell is commonly used in medium to heavy capacity applications. Each load cell includes 20 feet of load cell cable and is FM approved.
Features
- Painted alloy steel
- FM approved
- Environmentally sealed
- IP 66 rating
- 3 mV/V output
- Load cell cable length 20 ft
- Safe overload up to 150% capacity
Interchange
- VPG Sensortronics 65023A
- VPG Celtron SQB
Documentation
1 year limited manufacturer's warranty
- Capacity:
- 15,000 lb
- Safe Overload:
- 150% capacity
- Length:
- 8.75"
- Width:
- 2.00"
- Height:
- 2.00"
- Hole Threading:
- 1-14 UNS
- Construction:
- Alloy Steel
- Cable Color Code:
- Red = + Excitation, Black = - Excitation, Green = + Signal, White = - Signal
- Rated Excitation:
- 10 VDC (maximum of 15 V)
- Full Scale Output:
- 3 mV/V
- Input Resistance:
- 350 +/- 3 ohms
- Output Resistance:
- 400 +/- 20 ohms
- Insulation Resistance:
- >5000 megohms
- Compensated Temperature Range:
- -10°C to 40°C
- Operating Temperature Range:
- -18°C to 65°C
- Seal Type:
- Hermetically Sealed
- IP Rating:
- IP66
- Combined Error:
- +/- 0.017% full scale
- Cable Length:
- 20 ft
- Part Number:
- 207852
- Manufacturer:
- Rice Lake Weighing Systems
- Model:
- RL32018
