Rice Lake RL32011WB-T 1.25K 1250 lb Stainless Steel Single Ended Beam Load Cell, NTEP

MSRP: $525.00
$498.75
(Save $26.25)
Part #:
119796
Availability:
Typically ships in 1-2 days

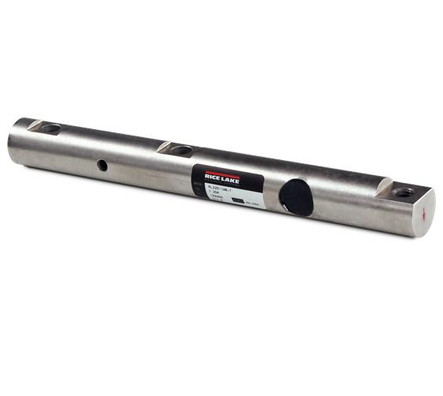

Rice Lake RL32011WB-T 1.25K 1250 lb Stainless Steel Single Ended Beam Load Cell

Rice Lake RL32011WB-T Stainless Steel Single Ended Beam Load Cells are the replacement for the threaded style Avery Weigh-Tronix Weigh Bar. The RL32011WB-T is suitable for a large variety of floor scales. The RL32011WB-T load cell has a potted IP67 rating, 20 ft of load cell cable, and is constructed of stainless steel. Load cell is NTEP approved for legal for trade applications.

The RL32011WB-T load cells are interchangeable with the threaded style Avery Weigh-Tronix Weigh Bar.

Features

  • 1250 lb capacity rating
  • Stainless steel
  • IP 67 potted
  • 2 mV/V output
  • Load cell cable length 20 ft
  • 2 year limited manufacturer's warranty
  • NTEP Approved
  • Safe overload up to 150% capacity
  • Safe sideload up to 100% capacity
2 year limited manufacturer's warranty
Manufacturer:
Rice Lake Weighing Systems
Model:
RL32011WB-T 1.25K
Part Number:
119796
Certification:
NTEP 1:5000 Class III
Other Approvals:
cFM
Capacity Rating:
1250 lb / 566.99kg
Safe Overload:
150% capacity
Safe Side Load:
100% Capacity
Length:
11.5"
Height:
1.25"
Construction / Finish:
Stainless steel
Cable Color Code:
Green = + Excitation, Black = - Excitation, White = + Signal, Red = - Signal,
Rated Excitation:
5-10 VDC (maximum of 15 V)
Full Scale Output:
2.0 mV/V Ā± 0.1% mV/V
Output Resistance:
350 (Ā± 3) ohms
Input Resistance:
385 (Ā± 10) ohms
Insulation Resistance:
5,000 megohms
Compensated Temperature Range:
14Ā°F to 104Ā°F/-10Ā°C to 40Ā°C
Operating Temperature Range:
-40Ā° F to 150Ā° F / -40Ā°C to 65Ā°C
Seal Type:
Potted IP67
Combined Error:
0.02% full scale
Non-Repeatability:
Ā± 0.01% full scale
Cable Length:
20 ft
Cable Diameter:
0.190 polyurethane jacket
Interchangeable Products:
Threaded style Avery Weigh-Tronix Weigh Bar
