Discontinued by the Manufacturer

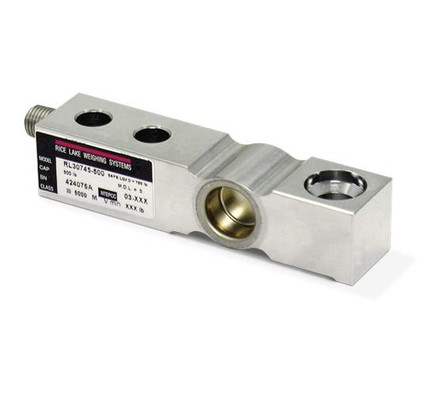

Rice Lake RL30745-10,000lb 10,000 lb Stainless Steel Single Ended Beam Load Cell 30' Cable
Rice Lake RL30745 stainless steel single ended beam load cells are most commonly used in platform scales and other medium capacity weighing applications. The RL39123 load cells have 15 ft of load cell cable and are constructed of stainless steel. The RL30745 series load cells are NTEP Certified 1:5000 Class III.
The RL30745 is used in the Rice Lake Weighing System Modules RLTM. The RL30745-10,000 lb can be interchangeable with Mettler Toledo TB600364-10,000 lb and HBM THC.
Features
- 10,000 lb capacity rating
- Stainless steel construction
- IP 67 rating
- 2 mV/V output
- Load cell cable length 30 ft
- 2 year limited manufacturer's warranty
- NTEP Certified 1:5000 Class III
- Safe overload up to 150% capacity
- Safe sideload up to 100% capacity
2 year limited manufacturer's warranty
- Manufacturer:
- Rice Lake Weighing Systems
- Model:
- RL30745-10,000lb
- Part Number:
- 45466
- Certification:
- NTEP Certified 1:5000 III
- Other Approvals:
- cFM
- Capacity Rating:
- 10000 lb / 4536 kg
- Safe Overload:
- 150% capacity
- Safe Sideload:
- 100% capacity
- Length:
- 6.87"
- Width:
- 1.68"
- Height:
- 1.68"
- Construction / Finish:
- Stainless steel
- Cable Color Code:
- Green = + Excitation, Black = - Excitation, White = + Signal, Red = - Signal, Yellow = Shield
- Rated Excitation:
- 5-10 VDC (maximum of 15 V)
- Full Scale Output:
- 2.0 mV/V (+/- 0.002mV/V)
- Bridge Resistance:
- 350 ohms nominal
- Insulation Resistance:
- 5000 megohms
- Operating Temperature Range:
- -40° F to 150° F / -40°C to 65°C
- Compensated Temperature Range:
- 14° F to 104° F / -10°C to 40°C
- Seal Type:
- IP67 Welded Seal
- Non-repeatability:
- 0.01 % full scale
- Deflection at Capacity:
- 0.012"
- Cable Length:
- 30 ft
- Cable Diameter:
- 0.190 polyurethane jacket
- Interchangeable Products:
- Mettler Toledo TB600364-10,000lb, HBM THC
