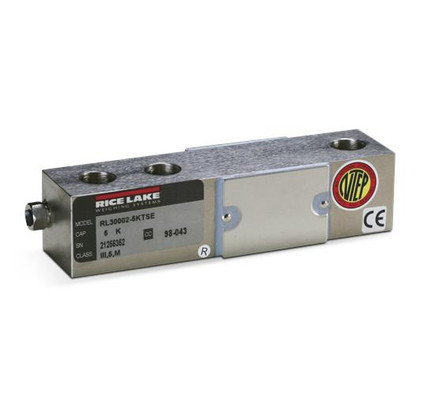

Rice Lake RL30002-2K 2000 lb Single Ended Beam Load Cell, NTEP
The Rice Lake RL30002 thru hole single ended beam load cells are most commonly used in platform scales and hanging scales. The RL30002 series load cells have a non threaded hole, come with a 20 ft load cell cable, and are constructed of nickel plated alloy steel. They are NTEP approved models are from 1000 lb to 5,000 lb capacities.
Features
- 2000 lb capacity rating
- High alloy steel construction, nickel plated
- IP 67 rating
- 3 mV/V output
- Load cell cable length 20 ft
- 2 year limited manufacturer's warranty
- NTEP Approved
- Safe overload up to 150% capacity
- Safe sideload up to 100% capacity
2 year limited manufacturer's warranty
- Manufacturer:
- Rice Lake Weighing Systems
- Model:
- RL30002-2K
- Part Number:
- 21522
- Certification:
- NTEP Certified 1:5,000 III
- Other Approvals:
- cFM, CE
- Capacity Rating:
- 2000 lb / 907.2 kg
- Safe Overload:
- 150% capacity
- Safe Side Load:
- 100 % capacity
- Length:
- 5.12"
- Width:
- 1.25"
- Height:
- 1.25"
- Hole Threading:
- thru hole
- Construction / Finish:
- High-alloy steel, nickel plated
- Cable Color Code:
- Red = + Excitation, Black = - Excitation, Green = + Signal, White = - Signal
- Rated Excitation:
- 5-10 VDC (maximum of 15 V)
- Full Scale Output:
- 3.0 mV/V
- Bridge Resistance:
- 350 ohms nominal
- Insulation Resistance:
- 5000 megohms
- Compensated Temperature Range:
- 14° F to 104° F / -10°C to 40°C
- Operating Temperature Range:
- -40° F to 150° F / -40°C to 65°C
- Seal Type:
- IP67 Environmentally Sealed
- Nonlinearity:
- 0.03 % full scale
- Hysteresis:
- 0.02 % full scale
- Deflection at Capacity:
- 0.015"
- Cable Length:
- 20 ft
- Cable Diameter:
- 0.200 polyurethane jacket
- Interchangeable Products:
- VPG TEDEA-HUNTLEIGH 3410, Artech 30210
