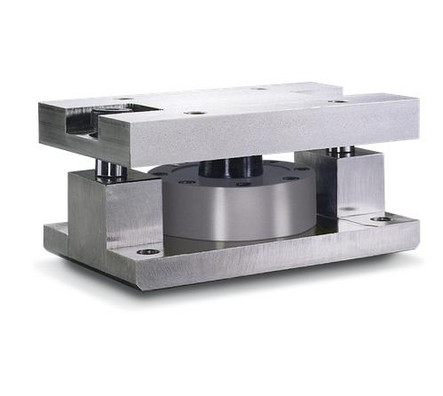

Rice Lake RL2200SS weigh module kits are ideal for hoppers, tanks, food processing, and custom weighing applications. This kit includes one stainless steel RL2200SS load cell and one stainless steel module. RL2200SS weigh modules are self-centering, self-checking, hermetically sealed, and IP66/IP68 rated.
Features
- Hermetically sealed, IP66/IP68 load cell for hostile environments
- One fully stainless steel module and load cell
- Each individual load cells cable length is 30 ft
- Low profile design
- Self-centering in all directions, able to withstand excessive side loads
- Self-checking assembly
- 150% capacity safe overload
Documentation
Rice Lake RL2200SS Data Sheet Rice Lake RL2200 Installation Manual
2 year limited manufacturer's warranty
- Capacity:
- 2500 lb
- Load Cell Safe Overload:
- 150% capacity
- Load Cell Rated Excitation:
- 5-10 VDC (maximum of 20 V)
- Load Cell Output:
- 2500 lb Modules are 2 mV/V, all other capacities are 4 mV/V
- Bridge Resistance:
- 350 ohm
- Construction:
- Stainless steel
- IP Rating:
- IP66/68
- Seal Type:
- Hermetically sealed
- Load Cell Cable Length:
- 30 ft
- Load Cell Color Code:
- Red = +Excitation, Black = -Excitation, White = +Signal, Green = -Signal
- Part Number:
- 76657
- Model:
- RL2200SS-2500 lb
- Manufacturer:
- Rice Lake Weighing Systems
