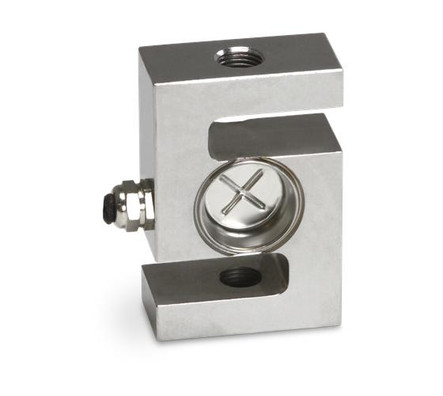

Rice Lake RL20001HE-1500 1500 lb Stainless Steel S-Beam Load Cell
Rice Lake RL20001HE Stainless Steel S-Beam load cells are best suited for use in hanging scale applications such as hoppers and tank scales and is commonly used for conversion kits. The RL20001HE load cell is constructed of stainless steel and has a 20 ft long load cell cable. They have a welded sealed and have an IP 68 rating. RL20001 load cells can be purchased in a wide variety of capacity ratings from 500 lbs up to 10,000 lbs. The RL20001HE is NTEP certified class III 1:5000 / IIIL 1:10,000. The Rice Lake RL20001HE s-beam load cells are used in the ITCM Isolated Tension Cell Mount kit. They are also interchangeable with VPG Sensortronics 60063 load cells.
Features
- 1500 lb capacity rating
- Stainless steel construction
- IP 68 rating
- 2 mV/V
- Load cell cable length 20 ft.
- 2 year limited manufacturer's warranty
- NTEP Approved
- Safe overload up to 150% capacity
2 year limited manufacturer's warranty
- Manufacturer:
- Rice Lake Weighing Systems
- Model:
- RL20001HE-1500
- Part Number:
- 46472
- Certification:
- NTEP Certified 1:5000 III/1:10,000 IIIL
- Other Approvals:
- cFM, CE
- Capacity Rating:
- 1500 lb / 680.4 kg
- Safe Overload:
- 150% capacity
- Rated Excitation:
- 5-10 VDC (maximum of 15 V)
- Height:
- 3"
- Width:
- 2"
- Depth:
- 1"
- Hole Threading:
- 1/2-20UNF-2B
- Construction / Finish:
- Stainless steel
- Cable Color Code:
- Red = + Excitation, Black = - Excitation, Green = + Signal, White = - Signal
- Full Scale Output:
- 2.0 mV/V
- Bridge Resistance:
- 350 ohms nominal
- Compensated Temperature Range:
- 14° F to 104° F / -10°C to 40°C
- Operating Temperature Range:
- -40° F to 150° F / -40°C to 65°C
- Seal Type:
- IP68 welded sealed
- Nonlinearity:
- 0.03 % full scale
- Hysteresis:
- 0.02 % full scale
- Insulation Resistance:
- 5000 megohms
- Cable Length:
- 20 ft
- Cable Diameter:
- 0.200 polyurethane jacket
- Interchangeable Products:
- VPG Sensortronics 60063
