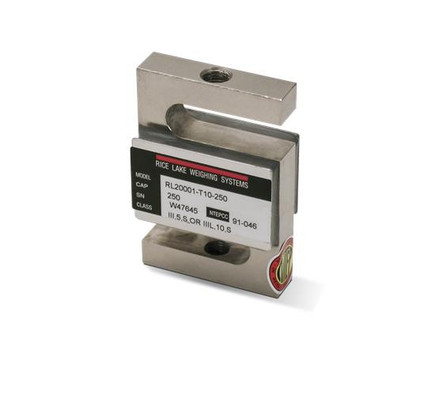

Rice Lake RL20001-2500 2500 lb S-Beam Load Cell
Rice Lake RL20001 S-Beam load cells are best suited for use in hanging scale applications such as hoppers and tank scales and is commonly used for conversion kits. The RL20001 load cell is constructed of alloy steel and has a 20 ft long load cell cable. They are environmentally sealed and have an IP 67 rating. RL20001 load cells can be purchased in a wide variety of capacity ratings from 250 lbs up to 20,000 lbs. The RL20001 is NTEP certified class III 1:5000 / IIIL 1:10,000. The Rice Lake RL20001 s-beam load cells are used in the ITCM Isolated Tension Cell Mount kit. They are also interchangeable with the VPG Celtron STC and the VPG Sensortronics 60001 load cells.
Features
- 2500 lb capacity rating
- alloy steel construction
- IP 67 rating
- 3 mV/V
- Load cell cable length 20 ft.
- 2 year limited manufacturer's warranty
- NTEP Approved
- Safe overload up to 150% capacity
2 year limited manufacturer's warranty
- Manufacturer:
- Rice Lake Weighing Systems
- Model:
- RL20001-2500
- Part Number:
- 21408
- Certification:
- NTEP Certified 1:5000 III/1:10,000 IIIL
- Other Approvals:
- cFM, CE
- Capacity Rating:
- 2500 lb / 1134 kg
- Safe Overload:
- 150% capacity
- Rated Excitation:
- 5-10 V AC/DC (maximum of 15 V)
- Height:
- 3"
- Width:
- 2"
- Depth:
- 1"
- Hole Threading:
- 1/2-20UNF-2B
- Construction / Finish:
- High-alloy steel, nickel plated
- Cable Color Code:
- Red = + Excitation, Black = - Excitation, Green = + Signal, White = - Signal
- Full Scale Output:
- 3.0 mV/V
- Output Resistance:
- 350 (+/- 3) ohms
- Input Resistance:
- 385 (+/- 5) ohms
- Compensated Temperature Range:
- 14° F to 104° F / -10°C to 40°C
- Operating Temperature Range:
- -40° F to 150° F / -40°C to 65°C
- Seal Type:
- IP67 Environmentally Sealed
- Nonlinearity:
- 0.03 % full scale
- Hysteresis:
- 0.02 % full scale
- Insulation Resistance:
- 5000 megohms
- Cable Length:
- 20 ft
- Cable Diameter:
- 0.200 polyurethane jacket
