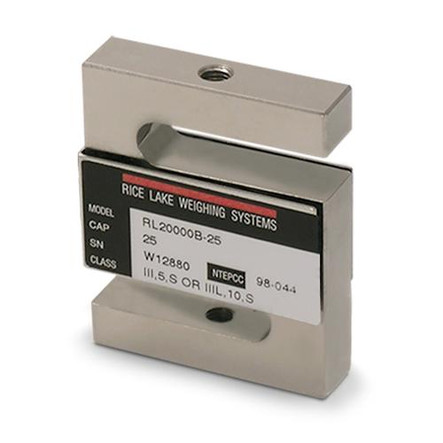

Rice Lake RL20000I-20K 20,000 lb S-Beam Load Cell (30 ft cable), NTEP
Rice Lake RL20000 S-Beam load cells are best suited for use in hanging scale applications such as hoppers or tanks. The RL20000 load cell is constructed of nickel plated alloy steel and has a 20 ft long load cell cable. They are environmentally sealed and have an IP 67 rating. RL20000 load cells can be purchased in a wide variety of capacity ratings from 25 lbs up to 20,000 lbs.
RL20000 load cells are used in the Rice Lake ITCM (Isolated Tension Cell Module) kit.
Features
- 20,000 lb capacity rating
- Alloy steel construction, nickel plated
- IP 67 rating
- 3 mV/V output
- Load cell cable length 30 ft
- 2 year limited manufacturer's warranty
- NTEP Approved
- Safe overload up to 150% capacity
2 year limited manufacturer's warranty
- Manufacturer:
- Rice Lake Weighing Systems
- Model:
- RL20000I-20K*
- Part Number:
- 17045
- Certification:
- NTEP Certified 1:5000 III / 1:10,000 IIIL
- Other Approvals:
- cFM, CE
- Capacity Rating:
- 20,000 lb / 9071.9 kg
- Safe Overload:
- 150% capacity
- Rated Excitation:
- 5-10 VDC (maximum of 15 V)
- Height:
- 7"
- Width:
- 5"
- Depth:
- 2"
- Hole Threading:
- 1 1/4-12 UNF-2B
- Construction / Finish:
- High-alloy steel, nickel plated
- Cable Color Code:
- Red = + Excitation, Black = - Excitation, Green = + Signal, White = - Signal
- Full Scale Output:
- 3.0 mV/V
- Output Resistance:
- 350 (+/- 3) ohms
- Input Resistance:
- 385 (+/- 5) ohms
- Compensated Temperature Range:
- 14° F to 104° F / -10°C to 40°C
- Operating Temperature Range:
- -40° F to 150° F / -40°C to 65°C
- Seal Type:
- IP67 Environmentally Sealed
- Combined Error:
- 0.02%
- Insulation Resistance:
- 5000 megohms
- Cable Length:
- 30 ft
- Cable Diameter:
- 0.200 polyurethane jacket
- Interchangeable Products:
- Artech 20210 (1-14 UNF)
