Rice Lake RL1855HE-HS Stainless Steel Hostile Environment Weigh Modules (4) 1000 lb Module Kit, 170867

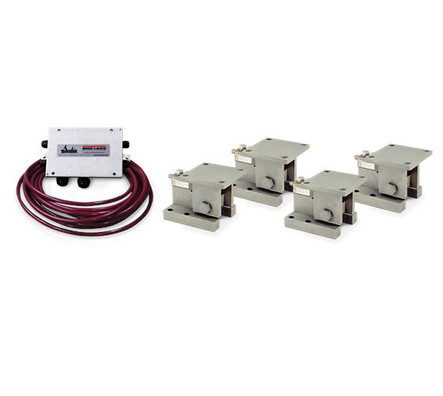

Rice Lake RL1855HE-HS Series weigh module kits are best suited for medium to heavy capacity tanks, bins and hoppers. This Rice Lake module kit included 4 RL32218S-HE load cells, 1 JB4SS stainless steel signal trim j-box, 4 RL1855HE-HS stainless steel compression mounts, and 25 feet of hostile environment EL147HE SURVIVOR® load cell cable. The RL32218S-HE Series load cells give you accuracy and dependability in any environment. The load cells are hermetically sealed with an IP69K rating, are constructed of stainless steel, and have a 20 ft long load cell cable. With the entire design being stainless steel and extreme protection rated load cells this kit is an ideal solution for exterior tank scales or scales in high corrosion and wash-down environments.
Features
- Medium to heavy capacity tank and hopper weighing applications
- 4000 lb combined capacity rating
- 2000 lb recommended capacity of scale
- Recommended readability 1 lb
- Four 1000 lb individual load cells (capacity rating)
- Stainless steel load cells
- IP69K rated load cells
- Load cell cable length 20 ft
- Load cell safe overload up to 150% capacity
- Four stainless steel RL1855HE-HS compression mounts
- 25 ft hostile environment EL147HE Survivor load cell cable
- Signal trim stainless steel junction box
- Easy load cell replacement
- Low profile design
- Simple design allows for bolting directly to tank and floor
- Unique sliding pin design compensates for thermal expansion/contraction
- NTEP Approved Class III 1:5000
- 2 year limited warranty
Documentation
Rice Lake RL32218S-HE Single Ended Beam Load Cell Specifications
- Manufacturer:
- Rice Lake Weighing Systems
- NTEP:
- Yes
- Model:
- RL1855HE-HS 1000 lb (4)
- Part Number:
- 170867
- Combined Capacity Rating:
- 4000 lb
- Individual Load Cell Capacity Rating:
- 1000 lb
- Recommended Capacity of Completed Scale:
- 2000 lb
- Load Cell Safe Overload:
- 150% capacity
- Load Cell Rated Excitation:
- 5-15 VDC
- Load Cell Output:
- 2 mV/V
- Cell Output Resistance:
- 350 ±5 ohm
- Cell Input Resistance:
- 400 ±20 ohm
- Load Cell Seal Type:
- IP69K Hermetically Sealed
- Load Cell Cable Length:
- 20 ft
- Load Cell Other Approvals:
- NTEP, cFM, WaterProof
- Cable Length (junction box to indicator):
- 25 ft
- Load Cell Color Code:
- Red = +Excitation, Black = -Excitation, Green = +Signal, White = -Signal
