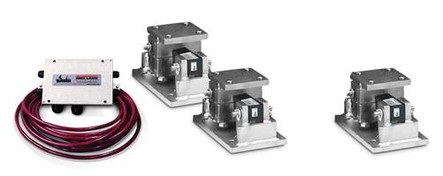

Rice Lake RL1600 SS stainless steel module kits are ideal for hoppers, tanks, blenders, food processing, and custom weighing applications. This kit includes three RL77032SS stainless steel load cells, three RL1600 SS stainless steel steel modules, a JB4SS junction box, and 25 ft of EL147HE SURVIVOR load cell cable.
Features
- Environmentally sealed, IP67 rated load cells
- 3 stainless steel steel modules
- 3 stainless steel load cells
- One JB4SS NEMA Type 4X stainless steel signal trim junction box
- 25 ft of hostile environment EL147HE SURVIVOR load cell cable
- Each individual load cell cable length is 25 ft
- Self-checking, easy-to-use design allows module to be bolted directly to tank leg without requiring additional mounting plates or load buttons
- Center loaded double ended beam design
- 150% capacity safe overload
Documentation
Rice Lake RL1600 SS and HE Guide Rice Lake RL1600 SS and HE Installation Manual
2 year limited manufacturer's warranty
- Individual Load Cell Capacity Rating:
- 25,000 lb
- Combined Capacity Rating:
- 75,000 lb
- Recommended Capacity of Completed Scale:
- 37,500 lb
- Load Cell Safe Overload:
- 150% capacity
- Load Cell Rated Excitation:
- 5-10 VDC
- Load Cell Output:
- 3 mV/V
- Output Resistance:
- 700 (+/- 5) ohm
- Input Resistance:
- 770 (+/- 10) ohm
- Construction:
- Stainless steel
- IP Rating:
- IP67
- Seal Type:
- Environmentally sealed
- Load Cell Other Approvals:
- cFMus
- Load Cell Cable Length:
- 25 ft
- Load Cell Color Code:
- Red = +Excitation, Black = -Excitation, Green = +Signal, White = -Signal
- Part Number:
- 225342
- Model:
- RL1625SS 25,000 lb(3)
- Manufacturer:
- Rice Lake Weighing Systems
